DP Intel 2-OU (OCP ORV3) Liquid-Cooled System with NVIDIA HGX B300 8-GPU (complete rack and onsite service are required).
Official Supermicro specifications for the SYS-222GS-NB3OT-ALC.
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700 series processors with P-cores |
|---|---|
| Core Count | Up to 86C/172T; Up to 335MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Liquid Cooled) |
| Max GPU Count | 8 onboard GPUs |
|---|---|
| Supported GPU | NVIDIA SXM: HGX B300 8-GPU (288GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 6000MT/s ECC DDR5 RDIMM |
|---|---|
| Memory Voltage | 1.1V |

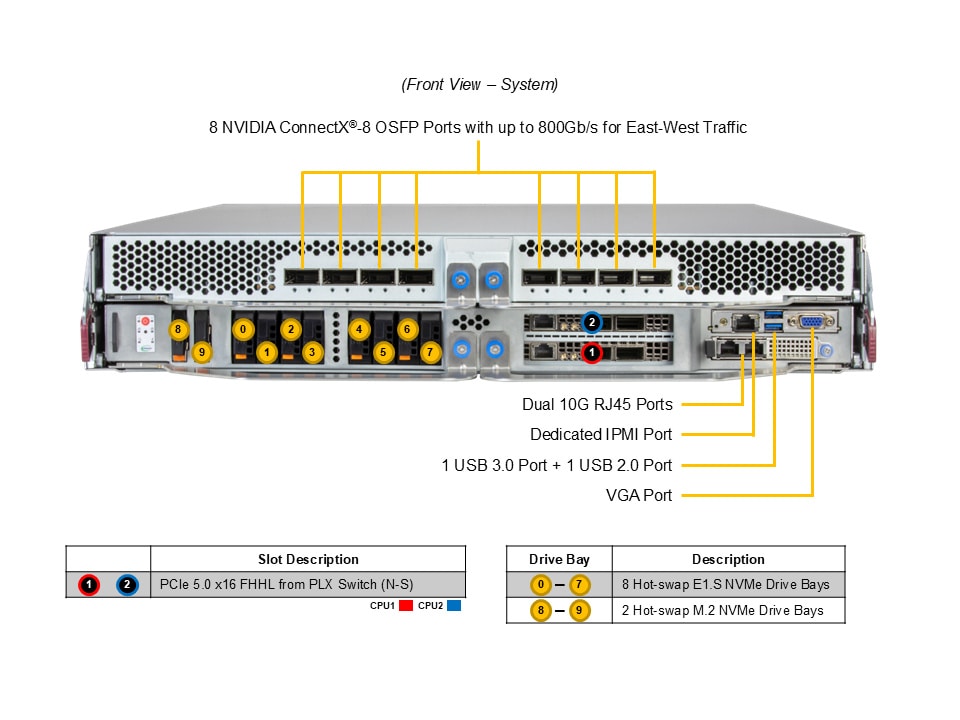

| LAN | 2 RJ45 10 GbE LAN ports (Intel® X710) 8 OSFP 800 Gb/s InfiniBand LAN ports (NVIDIA ConnectX®-8 SuperNIC) 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600, via DC-SCM) |
|---|---|
| Video | 1 VGA port (Front) |
| TPM | 1 TPM header |
| BIOS Type | AMI 64MB UEFI |
|---|
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
|---|
| Form Factor | 2-OU Rackmount (OCP ORV3) |
|---|---|
| Model | CSE-GP202TS-000NP |
| Height | 3.7" (94 mm) |
|---|---|
| Width | 21.1" (537 mm) |
| Depth | 31.69" (805 mm) |
| Package | 12.79" (H) x 28.74" (W) x 50.39" (D) |
| Weight | Gross Weight: 176 lbs (80 kg) Net Weight: 154 lbs (70 kg) |
| Available Color | Silver |
| PCI-Express (PCIe) Configuration | Default: 2 PCIe 5.0 x16 (in x16) FHHL slots |
|---|

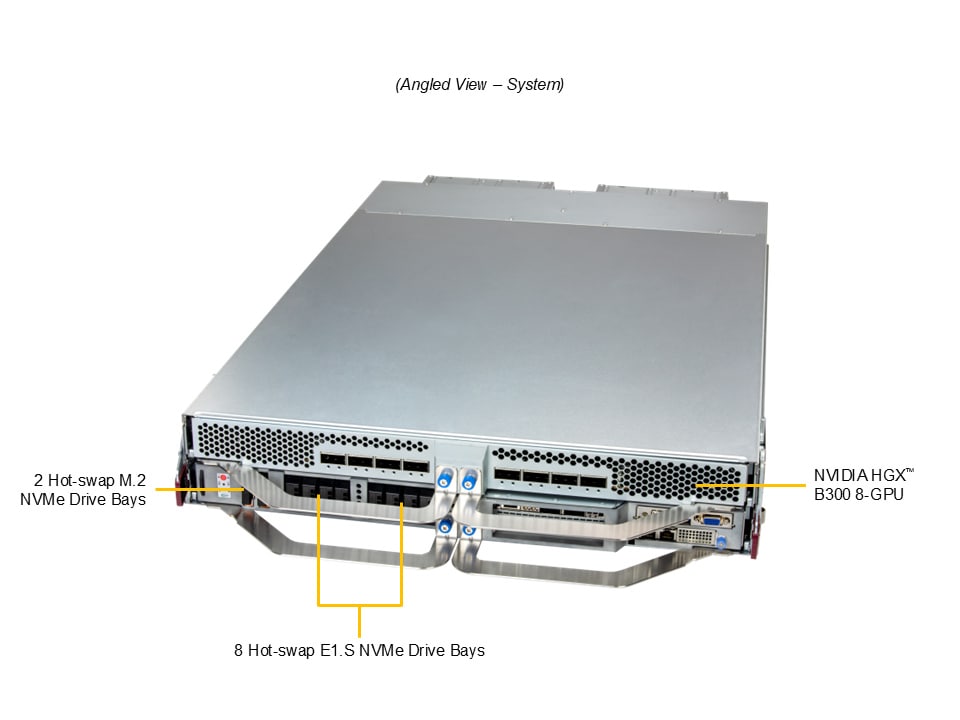

| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
|---|---|
| M.2 | 2 M.2 NVMe slots (M-key; RAID support via S3808N controller) |

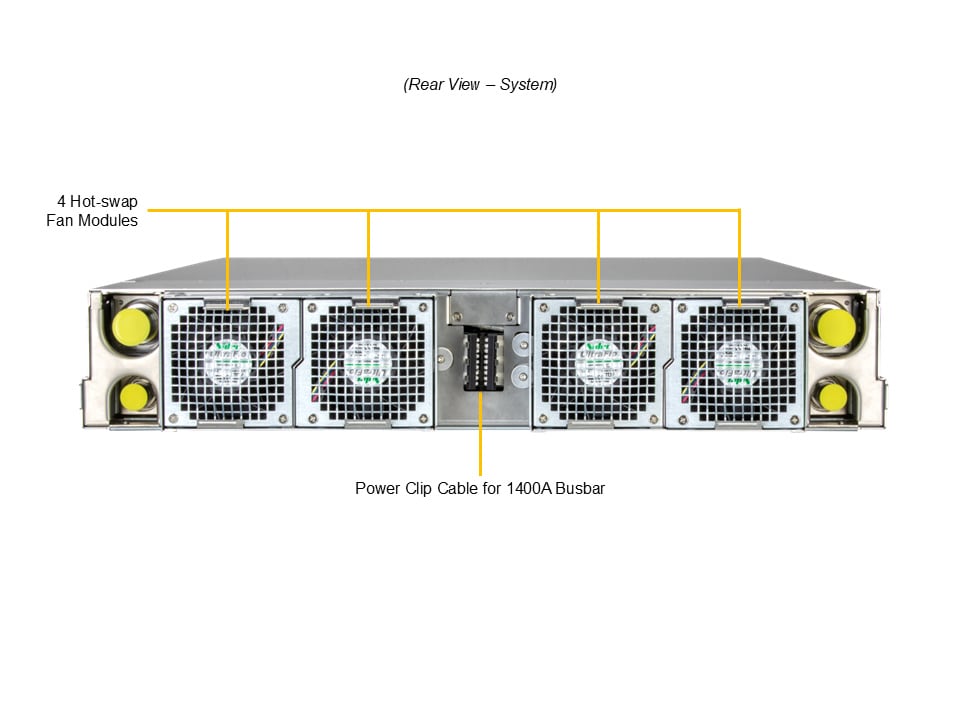

| Fans | Up to 4x 80mm + up to 4x 40mm fans |
|---|---|
| Air Shroud | 3 Air Shrouds |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) |
|---|
