2U 2-Node System with UP Intel and Up to 3 GPUs per Node.
Integrated board: X12SPG-NF
Official Supermicro specifications for the SYS-210GP-DNR.
| Model | Super X12SPG-NF |
|---|
| CPU | Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors |
|---|---|
| Core Count | Up to 40C/80T; Up to 60MB Cache |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
| Max GPU Count | Up to 3 double-width or 3 single-width GPUs |
|---|---|
| Supported GPU | NVIDIA PCIe: A10, A100, A30, A40, RTX A4000, RTX A4500 |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| Memory | Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
|---|---|
| Memory Voltage | 1.2V |
| Network Connectivity | Via AIOM |
|---|
| Video | 1 VGA port |
|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
|---|
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
|---|
| Form Factor | 2U 2-Node Rackmount |
|---|---|
| Model | CSE-227GTS-R2K63P |
| Height | 3.47" (88 mm) |
|---|---|
| Width | 17.6" (447 mm) |

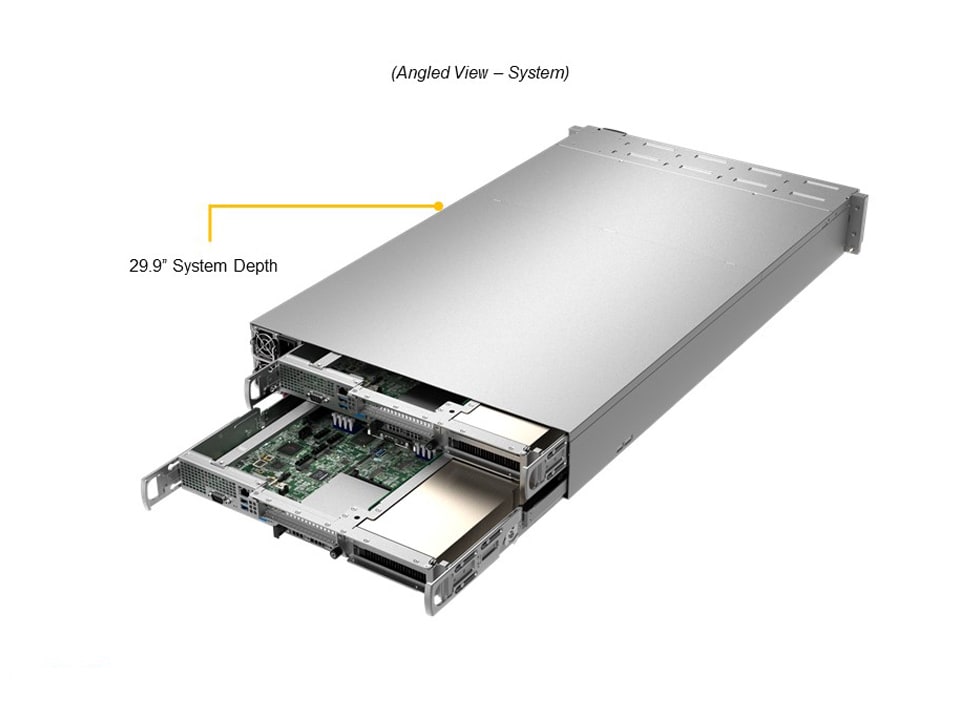

| Depth | 29.9" (760 mm) |
| Package | 9.44" (H) x 23.62" (W) x 43.3" (D) |
| Weight | Gross Weight: 60 lbs (27.21 kg) Net Weight: 55 lbs (24.94 kg) |
| Available Color | Black Front & Silver Body |
| PCI-Express (PCIe) Configuration | Default: 3 PCIe 4.0 x16 FHFL double-width slots |
|---|

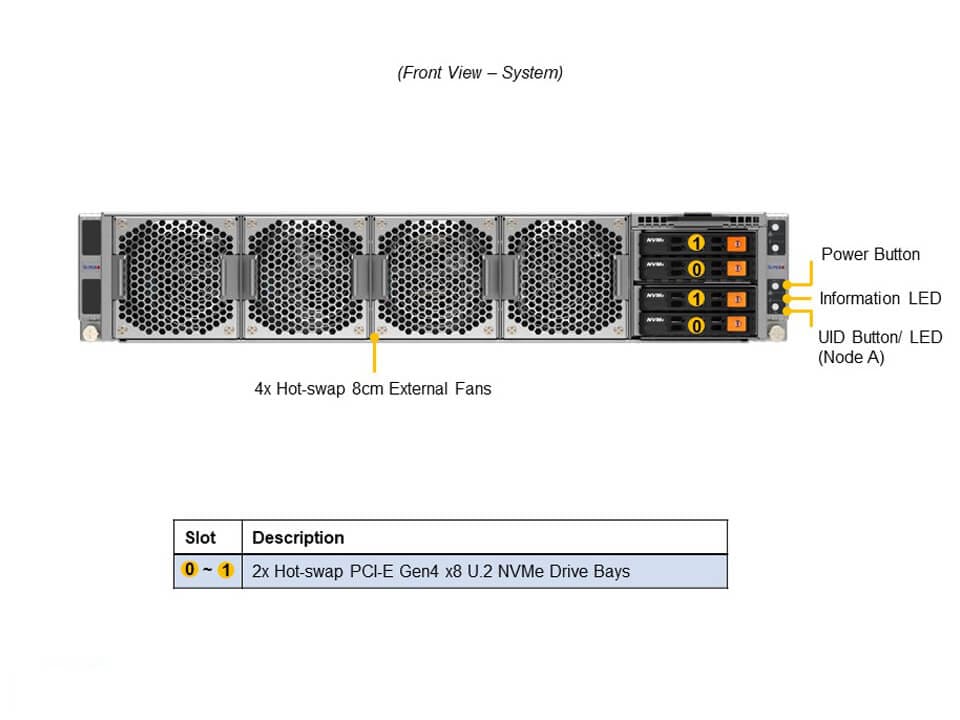

| Drive Bays Configuration | Default: Total 2 bays 2 front hot-swap 2.5" NVMe drive bays |
|---|---|
| M.2 | 2 M.2 NVMe/SATA slots (M-key) |
| Fans | Up to 4 Removable heavy-duty fan(s) |
|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) |
|---|
