DP Intel 2U PCIe GPU system with up to 4 double-width PCIe GPU accelerator cards.
Official Supermicro specifications for the SYS-221GE-FNR2.
| Model | Super X13DEH |
|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
|---|---|
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (air cooled) |
| Chipset | Intel® C741 |
| Max GPU Count | Up to 4 double-width GPUs |
|---|---|
| Supported GPU | NVIDIA PCIe: RTX PRO™ 4500 / RTX PRO™ 6000 Blackwell Server Edition |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 |
|---|
| Chipset | Intel® C741 |
|---|---|
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN |
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
|---|---|
| USB | 2 USB ports (rear) |
| Video | 1 mini-DP port |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
|---|
| Software | Redfish API; Supermicro Server Manager (SSM); Supermicro Power Manager (SPM); SuperDoctor® 5 (SD5); KVM with dedicated LAN; IPMI 2.0; OOB Management Package (SFT-OOB-LIC); SMCIPMITool; IPMIView |
|---|
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
|---|---|
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
| Form Factor | 2U Rackmount |
|---|---|
| Model | CSE-MG204-R000NDFP |
| Enclosure | 438.4 x 87 x 900 mm (17.3" x 3.43" x 35.43") |
|---|---|
| Package | 700 x 280 x 1200 mm (27.56" x 11.02" x 47.24") |
| Weight | Gross Weight: 103 lbs (46.8 kg) Net Weight: 88 lbs (40 kg) |
| Available Color | Silver |

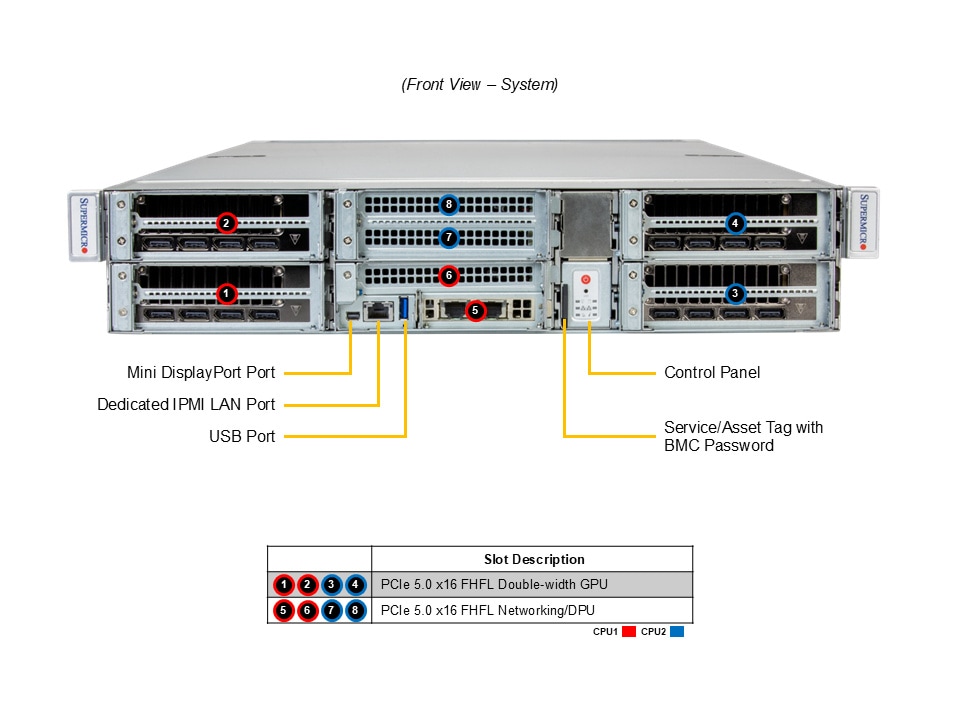

| PCI-Express (PCIe) Configuration | Default: 1 PCIe 5.0 x16 HHFL slot + 3 PCIe 5.0 x16 FHFL slots (up to 4 double-width + 4 AOC) |
|---|
| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap E1.S NVMe |
|---|---|
| M.2 | 2 M.2 NVMe/SATA slots (M-key) |
| Fans | Up to 8x 6cm heavy duty fans |
|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP) (non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP) (non-condensing) |
|---|

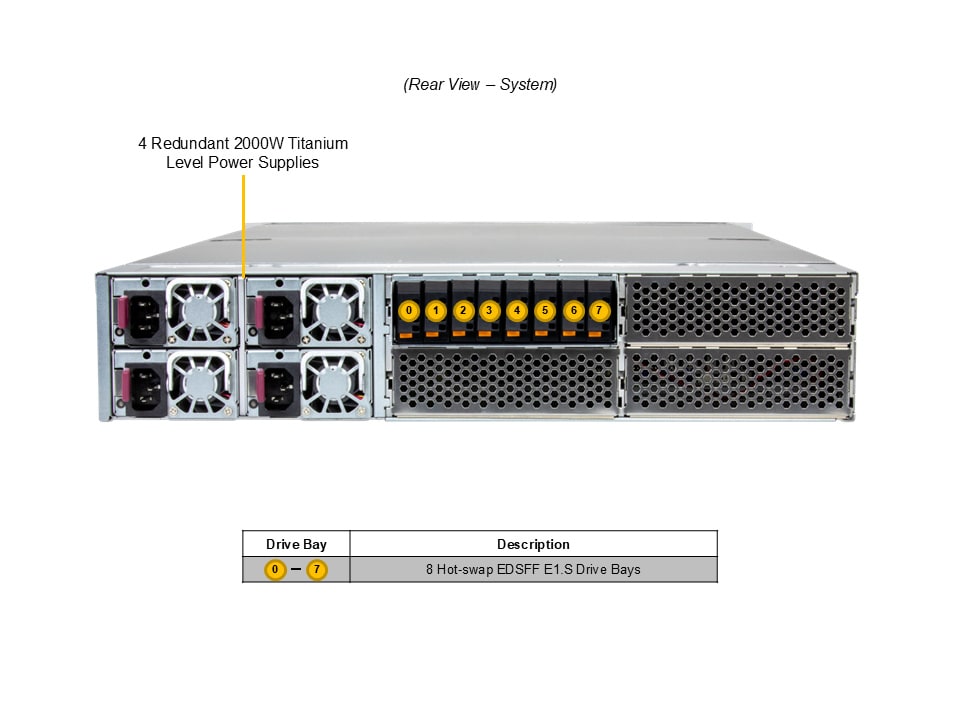

| PSU | 4x 2000W Redundant Titanium Level (96%) |
|---|
