DP Intel 2U PCIe GPU System with up to 4 NVIDIA H100, H100 NVL, or L40S.
Official Supermicro specifications for the SYS-221GE-NR.
| Model | Super X13DEH |
|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
|---|---|
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Chipset | Intel® C741 |
| Max GPU Count | Up to 4 double-width GPUs |
|---|---|
| Supported GPU | NVIDIA PCIe: H100, H100 NVL, L40, L40S, RTX PRO™ 6000 Blackwell Server Edition |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 |
|---|
| Chipset | Intel® C741 |
|---|---|
| Network Connectivity | 1 RJ45 1GbE |
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN |
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
|---|---|
| USB | 2 USB ports (rear) |
| Video | 1 mini-DP port |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
|---|
| Software | Redfish API; Supermicro Server Manager (SSM); Supermicro Power Manager (SPM); SuperDoctor® 5 (SD5); KVM with dedicated LAN; IPMI 2.0; OOB Management Package (SFT-OOB-LIC); SMCIPMITool; IPMIView |
|---|
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
|---|---|
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
| Form Factor | 2U Rackmount |
|---|---|
| Model | CSE-GP201TS-R000NP |
| Enclosure | 438.4 x 88 x 900 mm (17.25" x 3.46" x 35.43") |
|---|---|
| Package | 22.5" x 11" x 45.5" |
| Weight | Gross Weight: 86.5 lbs (39.2 kg) Net Weight: 67.5 lbs (30.6 kg) |
| Available Color | Black front & silver body |

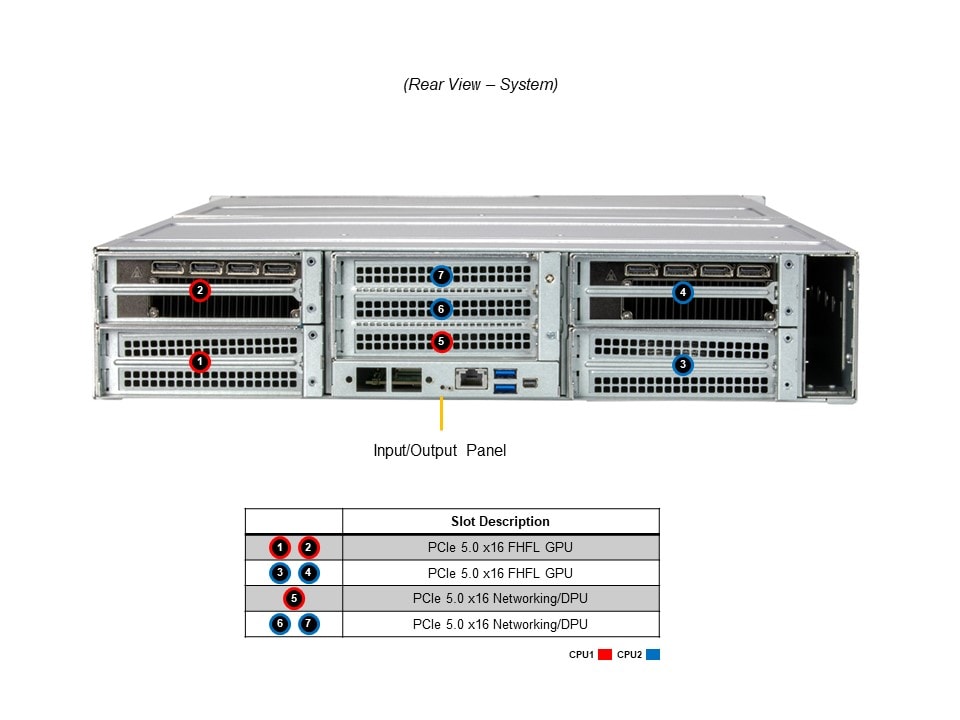

| PCI-Express (PCIe) Configuration | Default: 4 PCIe 5.0 x16 FHFL double-width slots + 3 PCIe 5.0 x16 FHFL slots |
|---|

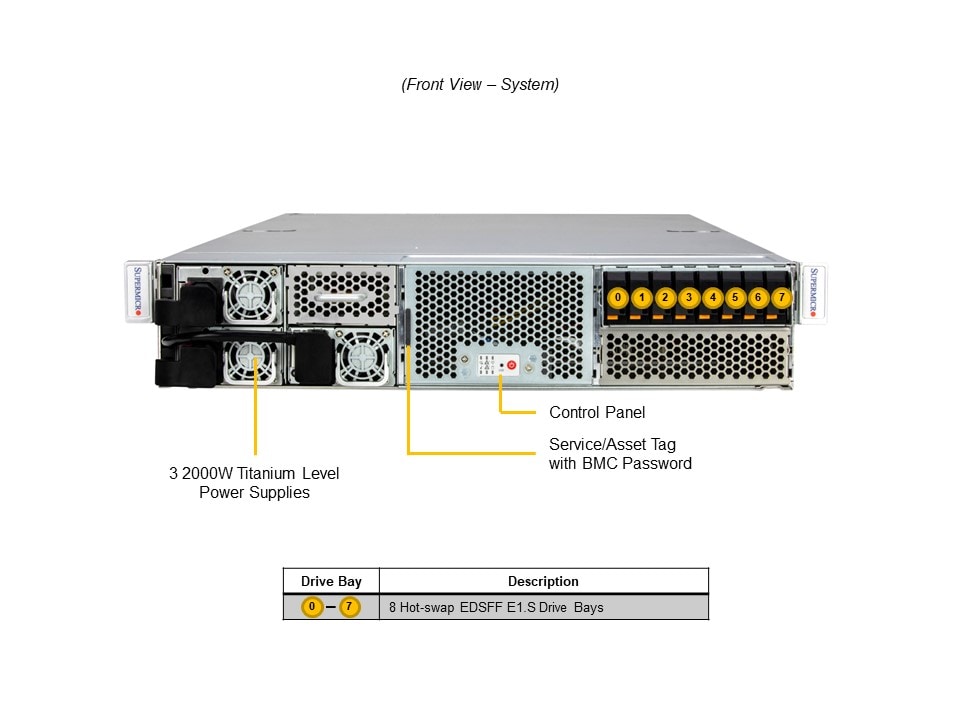

| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap E1.S NVMe |
|---|---|
| M.2 | 2 M.2 NVMe/SATA slots (M-key) |
| Fans | Up to 6x 6cm heavy duty fans |
|---|---|
| Air Shroud | 1 Air Shroud |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP) (non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP) (non-condensing) |
|---|
| PSU | 3x 2000W Redundant Titanium Level (96%) |
|---|
