DP Intel 2U liquid-cooled system with NVIDIA HGX H100 4-GPU or H200 4-GPU.
Official Supermicro specifications for the SYS-221GE-TNHT-LCC.
| Model | Super X13DEG-R |
|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
|---|---|
| Core Count | Up to 56C/112T; Up to 112.5MB Cache per CPU |
| Chipset | Intel® C741 |
| Max GPU Count | 4 onboard GPUs (liquid-cooled) |
|---|---|
| Supported GPU | NVIDIA SXM: HGX H100 4-GPU (80GB), HGX H200 4-GPU (141GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ |
| Memory | Slot Count: 32 DIMM slots / 16 channels Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM |
|---|
| Chipset | Intel® C741 |
|---|---|
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 |
| Video | 1 VGA port |
|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
|---|
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
|---|
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
|---|---|
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
| Form Factor | 2U Rackmount |
|---|---|
| Model | CSE-228G2TS-R5K25P |
| Enclosure | 437 x 89 x 830.3 mm (17.2" x 3.5" x 32.7") |
|---|---|
| Package | 22.5" x 11" x 45.5" |
| Weight | Gross Weight: 86.5 lbs (39.2 kg) Net Weight: 67.5 lbs (30.6 kg) |
| Available Color | Silver |
| PCI-Express (PCIe) Configuration | Default: 4 PCIe 5.0 x16 LP slots |
|---|---|
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110/2280) |

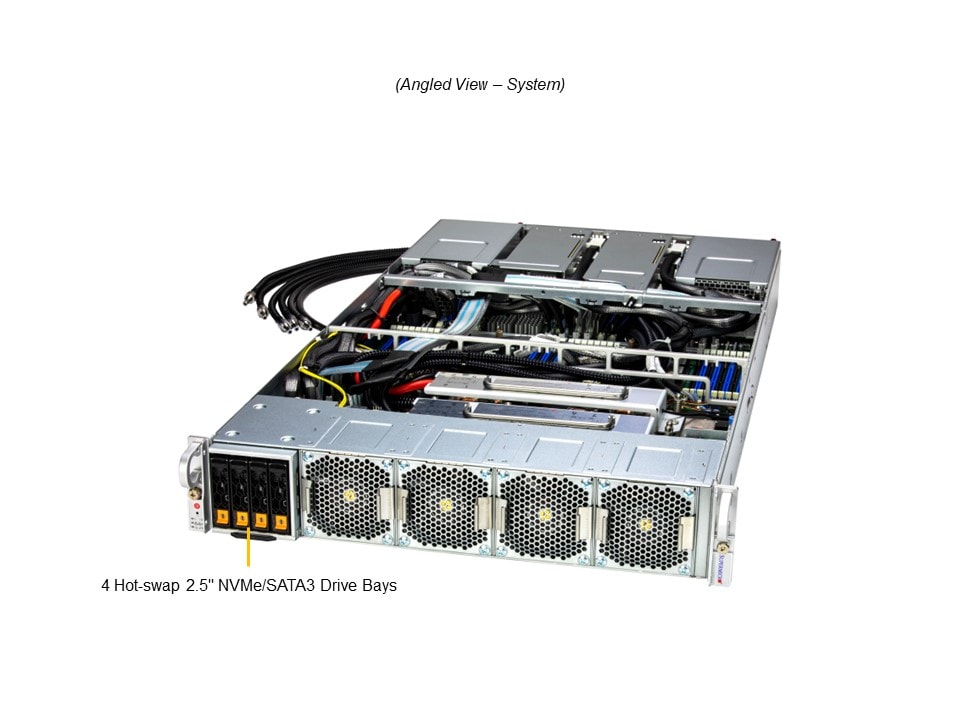

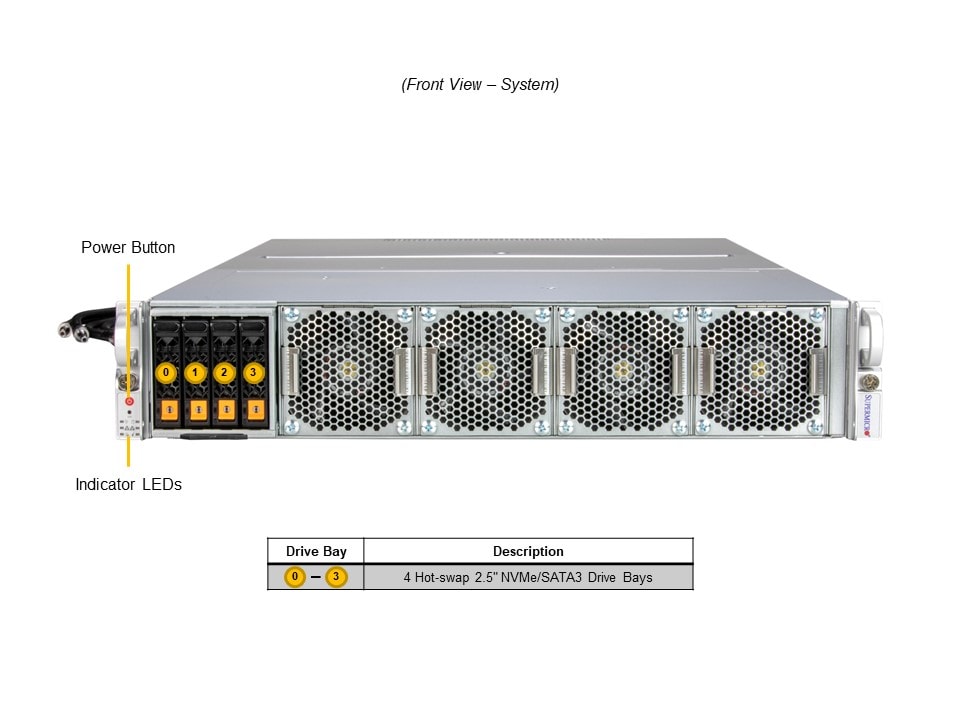

| Drive Bays Configuration | Default: Total 4 bays — 4 front hot-swap 2.5" NVMe/SATA |
|---|---|
| M.2 | 2 M.2 NVMe slots (boot) |
| Fans | Up to 4x 8cm fans |
|---|---|
| Air Shroud | 1 Air Shroud |
| Liquid Cooling | Direct-to-Chip (D2C) Cold Plate |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|---|

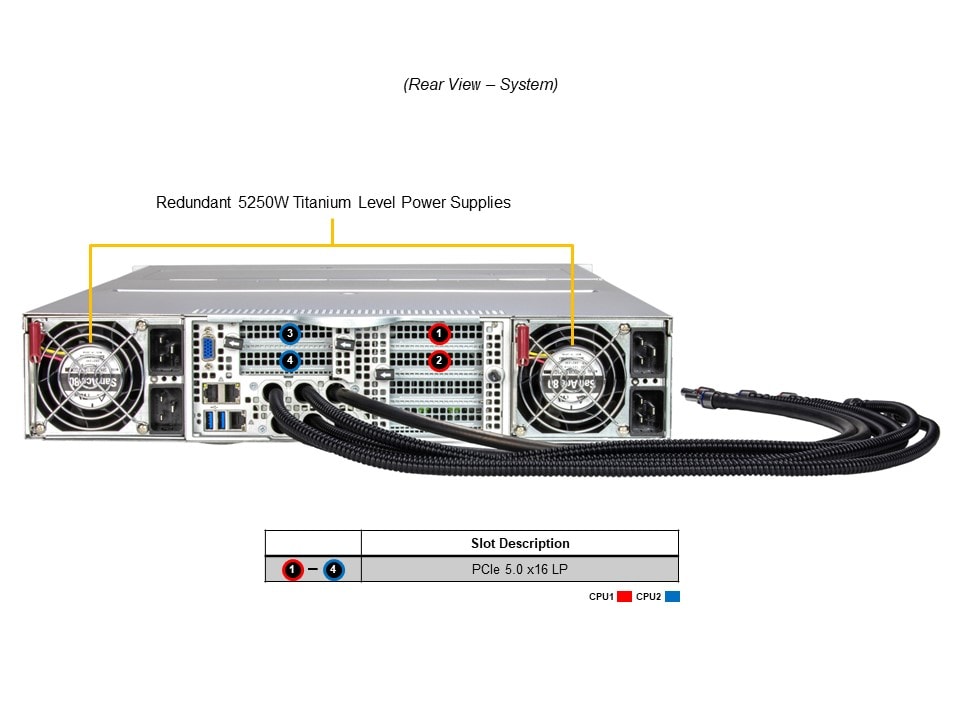

| PSU | 2x 5250W Redundant (1 + 1) Titanium Level (96%) |
|---|
