DP AMD Universal GPU System with AMD Instinct MI250 OAM.
Integrated board: H12DGQ-NT6
Official Supermicro specifications for the AS-4124GQ-TNMI.
| Model | Super H12DGQ-NT6 |
|---|
| CPU | Dual Socket SP3 AMD EPYC™ 7003 Series |
|---|---|
| Core Count | Up to 128C/256T |
| Note | Supports up to 280W TDP CPUs (Air Cooled) |
| Max GPU Count | 4 onboard GPUs (AMD Instinct™ MI250 OAM) |
|---|---|
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | AMD Infinity Fabric™ Link |
| Memory | Slot Count: 32 DIMM slots / 8 Channels Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
|---|---|
| Memory Voltage | 1.2V |
| Network Connectivity | Via AIOM |
|---|---|
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
|---|---|
| USB | 2 USB 3.0 ports (front) |
| Video | 1 VGA port (Front) |
| Serial | 1 COM port |
| BIOS Type | AMI 256MB SPI Flash ROM |
|---|
| Software | Supermicro Server Manager (SSM); Power Manager (SPM); Update Manager (SUM); SuperDoctor® 5 (SD5); KVM with dedicated LAN; IPMI 2.0; Watch Dog |
|---|
| Form Factor | 4U Rackmount |
|---|---|
| Model | CSE-458GTS-R3K06P |
| Height | 7" (175.6 mm) |
|---|---|
| Width | 17.67" (449 mm) |
| Depth | 32.79" (833 mm) |
| Package | 14.57" (H) x 27.55" (W) x 49.6" (D) |
| Weight | Gross Weight: 140 lbs (64 kg) Net Weight: 105 lbs (48 kg) |
| Available Color | Black Front & Silver Body |

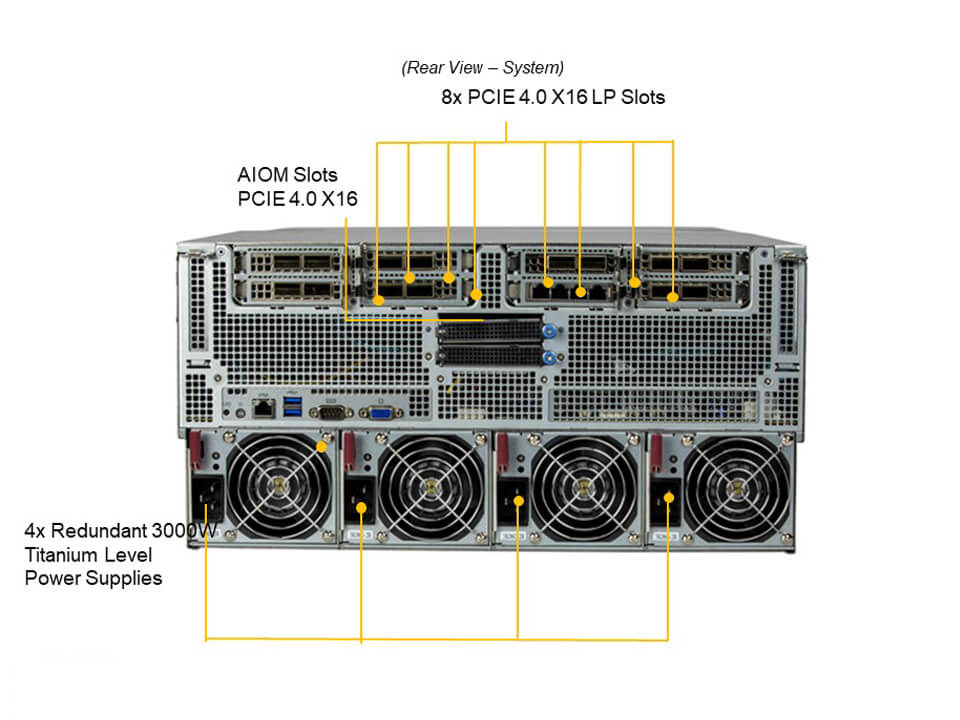

| PCI-Express (PCIe) Configuration | Default: 8 PCIe 4.0 x16 via PLX slots Option A: 8 PCIe 4.0 x16 via PLX slots + 2 PCIe 4.0 x16 LP slots |
|---|

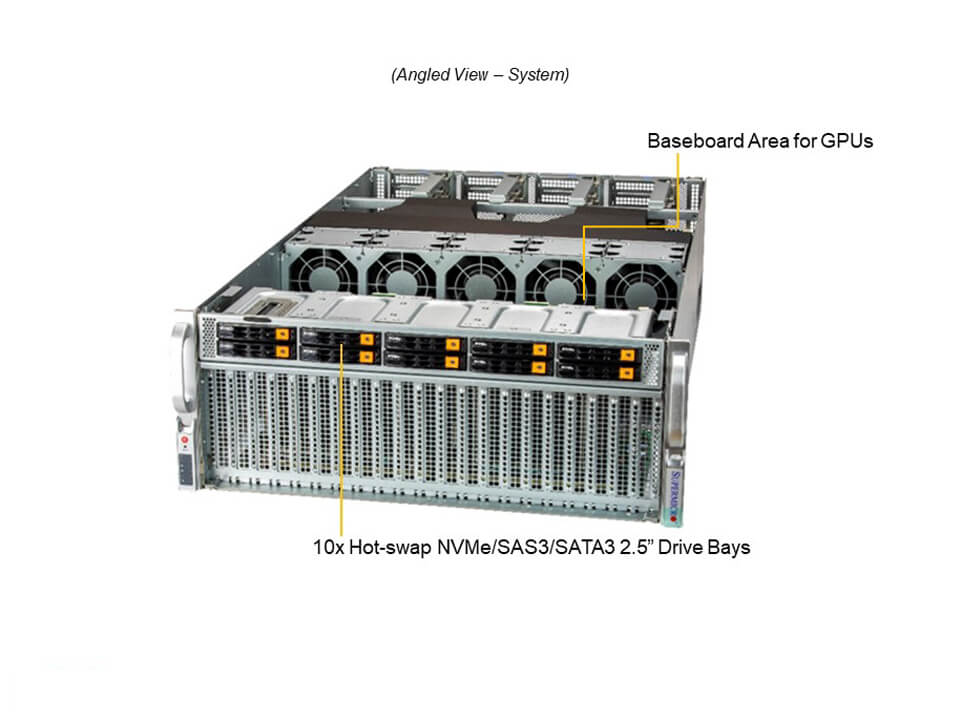

| Drive Bays Configuration | Default: Total 10 bays 10 front hot-swap 2.5" NVMe/SAS/SATA drive bays |
|---|
| Fans | Up to 5x hot-swap 11.5K RPM heavy duty fan(s) |
|---|
| ROHS | RoHS Compliant |
|---|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) |
| PSU | 4x 3000W Redundant (2+2) Titanium Level (96%) power supplies |
|---|
Official Supermicro firmware, drivers, manuals, and certification resources for the AS-4124GQ-TNMI. Semifly does not host these files — each link opens Supermicro's official page so you always get the latest version.
Latest system BIOS. Flash only if you have a BIOS-related issue.
Latest BMC firmware for out-of-band management.
Select your OS and device type on Supermicro's download center.
Official user's manual (HTML / PDF).
Official one-page datasheet for the AS-4124GQ-TNMI.
Certified operating systems and compatibility matrix.
Validate and benchmark your workload on this platform remotely.
Need a specific revision, a quote, or help selecting GPUs, CPUs, drives and networking? Talk to Semifly →
Tell us your GPU model and count, CPU, memory, drives, and networking targets — we'll return a build-to-order quote, typically within one business day.
