DP Intel 4U Dual-Root PCIe GPU System with up to 10 GPUs.
Integrated board: X13DEG-OA
Official Supermicro specifications for the SYS-421GE-TNRT.
| Model | Super X13DEG-OA |
|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
|---|---|
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Max GPU Count | Up to 10 double-width or 10 single-width GPUs |
|---|---|
| Supported GPU | NVIDIA PCIe: A10, L4, L40, L40S, RTX 5000 Ada, RTX 6000 Ada Generation, RTX A4000 |
| CPU-GPU Interconnect | PCIe 5.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional); Intel® Xe Link Bridges |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
|---|
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 |
|---|---|
| Networking | AIOM / OCP 3.0 support |
| Video | 1 VGA port |
|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
|---|
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
|---|
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
|---|---|
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
| Form Factor | 4U Rackmount |
|---|---|
| Model | CSE-418G2TS-R5K40P |
| Enclosure | 437 x 178 x 737 mm (17.2" x 7" x 29") |
|---|---|
| Package | 685 x 675 x 1041 mm (27" x 26.57" x 41") |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Color | Black front & silver body |

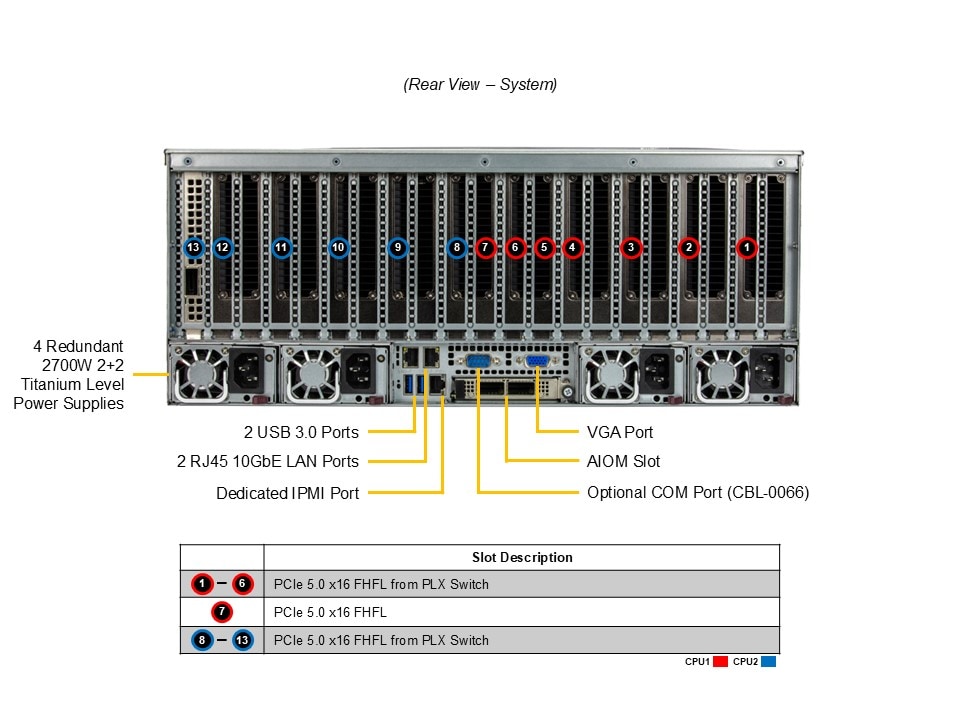

| PCI-Express (PCIe) Configuration | Default: 13 PCIe 5.0 x16 FHFL slots |
|---|

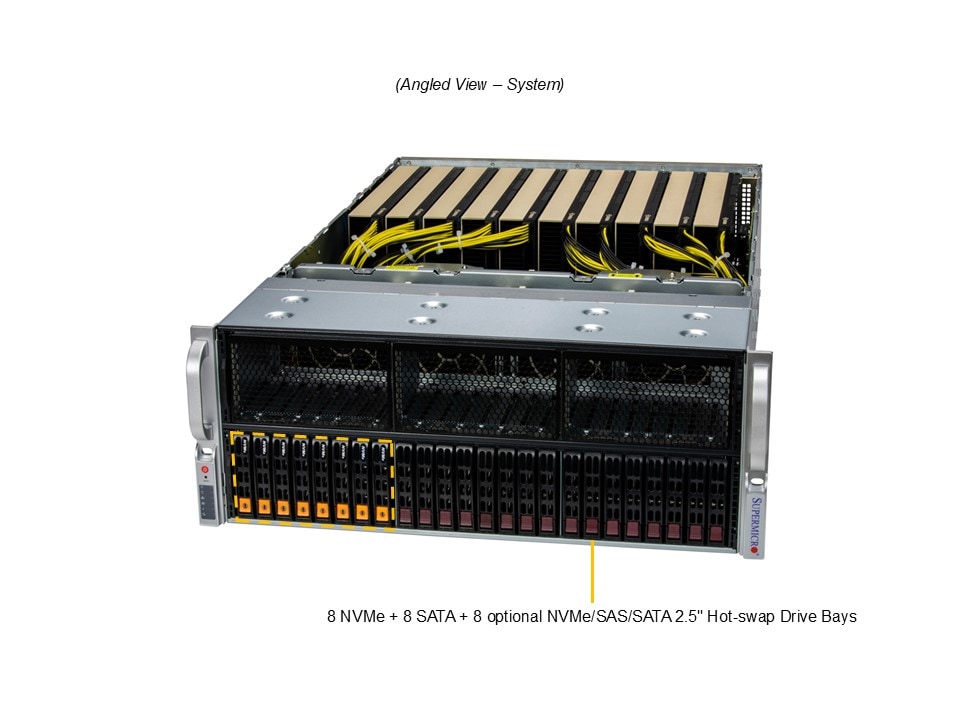

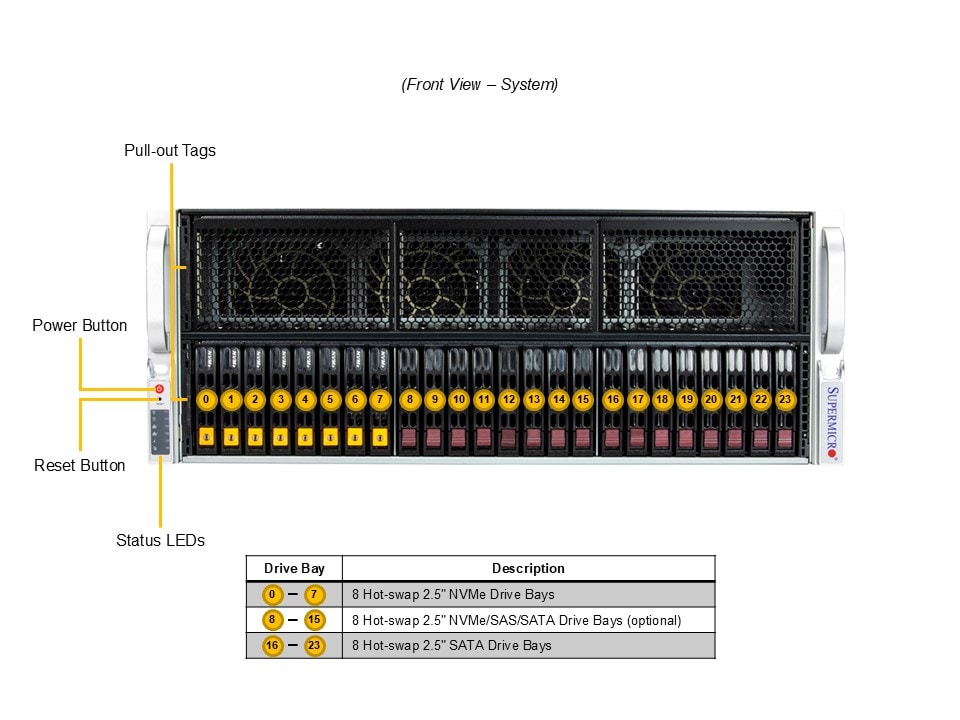

| Drive Bays Configuration | Default: Total 16 bays — 8 front hot-swap 2.5" NVMe + 8 front hot-swap 2.5" SATA Option A: Total 24 bays (16 NVMe + 8 SATA) |
|---|---|
| M.2 | 2 M.2 NVMe slots (M-key) |
| Fans | Up to 8 heavy duty fans with optimal fan speed control |
|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|---|
| PSU | 4x 2700W Redundant (2 + 2) Titanium Level (96%) |
|---|
