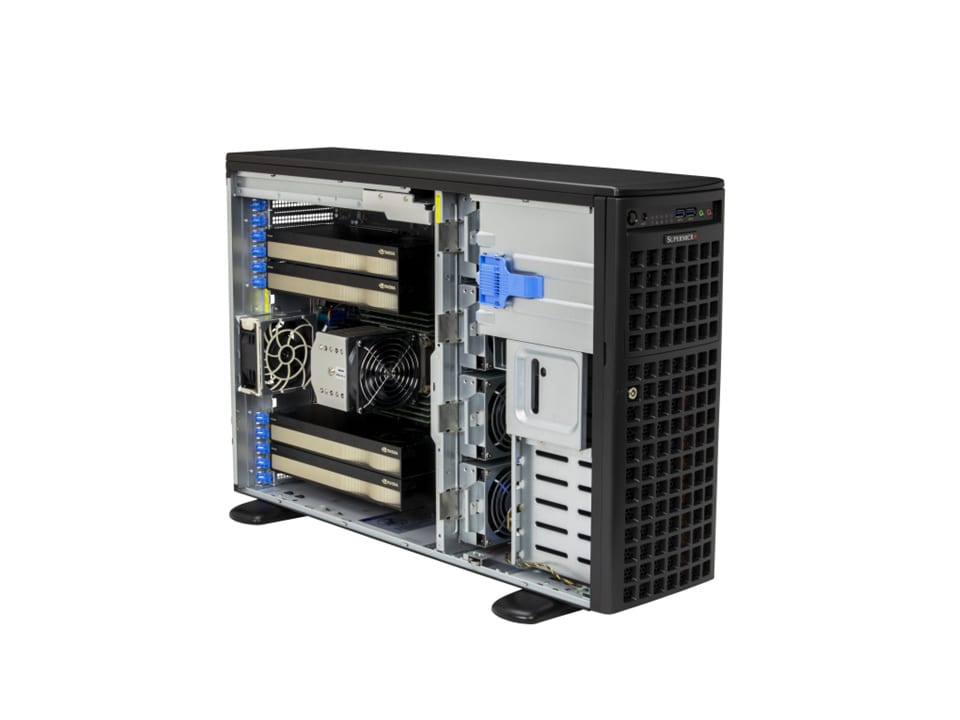

4U UP rackmount workstation with 8 hot-swap NVMe/SAS/SATA drive bays and PCIe 5.0.
Official Supermicro specifications for the SYS-542AW-TR.
| Model | Super X14SRG-TF |
|---|
| CPU | Single Socket E2 (LGA-4710-2) Intel® Xeon® 600 Processor for Workstation |
|---|---|
| Core Count | Up to 86C/172T; Up to 336MB Cache |
| Note | Supports up to 350W TDP CPUs |
| Chipset | Intel® W890 |
| Max GPU Count | Up to 2 triple-width or 4 double-width GPUs |
|---|---|
| Supported GPU | NVIDIA PCIe: RTX PRO™ 4000/5000 Blackwell, RTX PRO™ 6000 Blackwell Max-Q / Workstation Edition |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Memory | Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
|---|
| SATA | SATA (6Gbps) via Intel® W890; RAID 0/1/5/10 (VROC key required) |
|---|---|

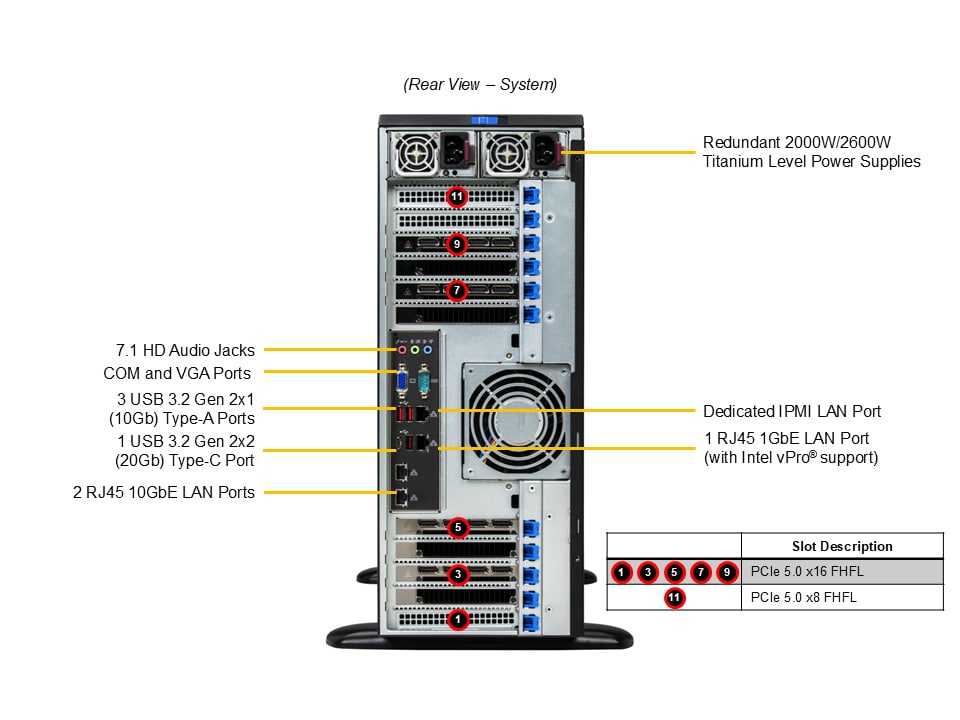

| Network Connectivity | 2 RJ45 10GbE with Intel® E610; 1 RJ45 1GbE with Intel® I219-LM; 1 RJ45 1GbE with ASPEED AST2600 |
| LAN | 1 RJ45 1GbE Dedicated BMC; 1 RJ45 1GbE (I219-LM); 2 RJ45 10GbE (E610) |
|---|---|

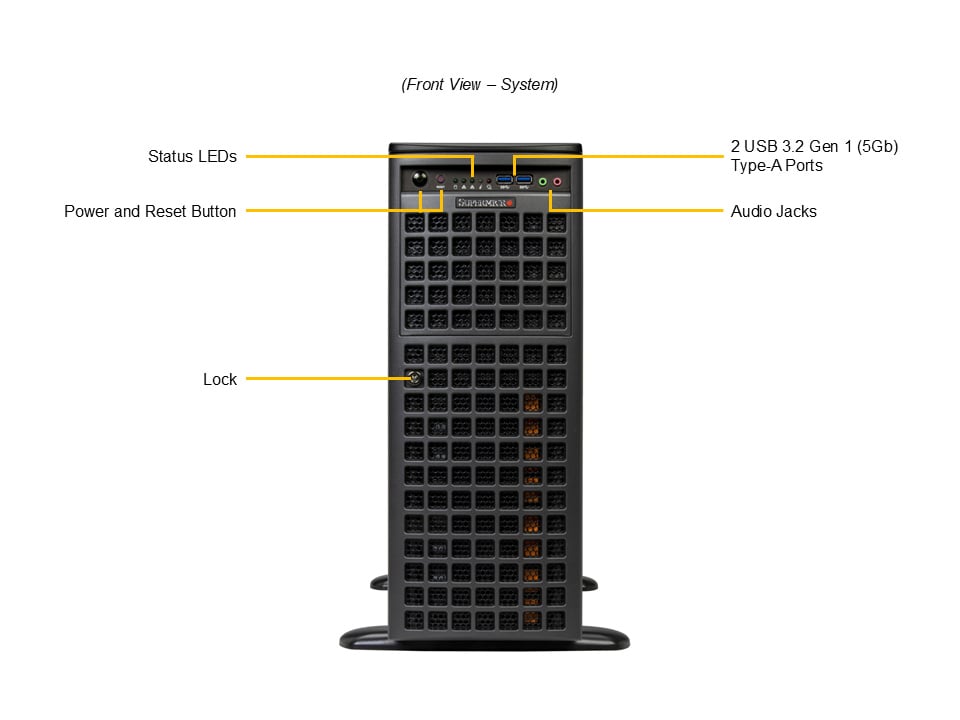

| USB | 2 USB 3.2 Gen1 (front); 3 USB 3.2 Gen2 (rear); 1 USB 3.2 Gen2x2 Type-C (rear) |
| Video | 1 VGA port (rear) |
| Audio | 7.1 HD Audio |
| TPM | 1 TPM onboard & header |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
|---|
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
|---|
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
|---|---|
| Temperature | System / memory / CPU temperature monitoring; CPU thermal trip support |
| Voltage | 3.3V standby, +5V standby, +5V, +3.3V, +12V monitoring |
| Form Factor | 4U Rackmount |
|---|---|
| Model | CSE-749TS-R000NBP |

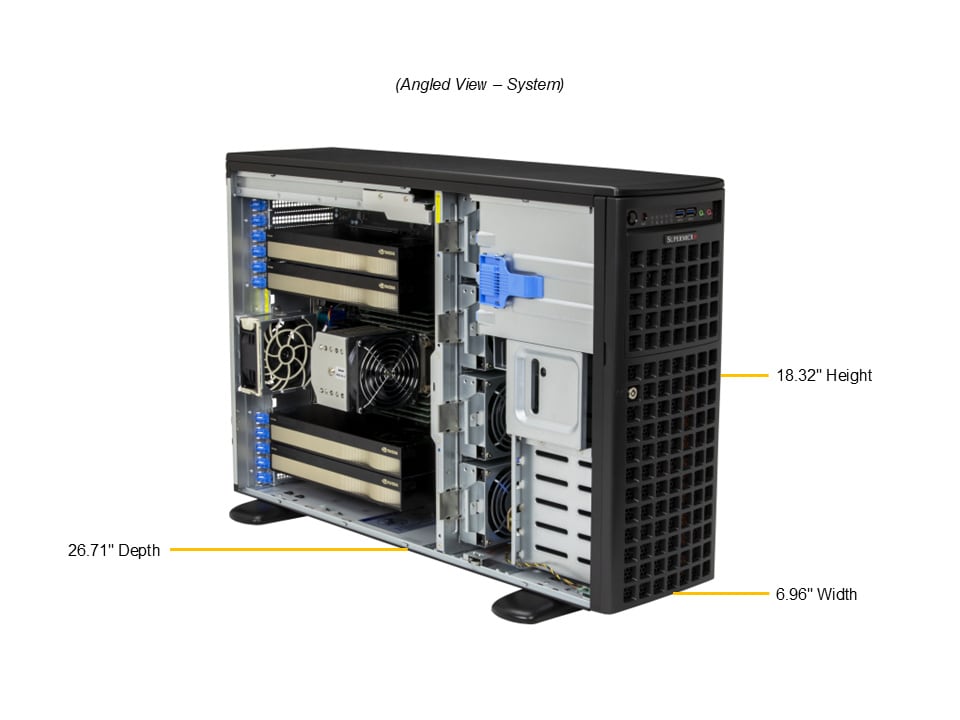

| Enclosure | 177 x 465.4 x 678.5 mm (6.96" x 18.32" x 26.71") |
|---|---|
| Package | 682 x 320 x 964 mm (26.85" x 12.59" x 37.95") |
| Weight | Gross Weight: 62 lbs (28.1 kg) Net Weight: 46 lbs (20.9 kg) |
| Available Color | Black |
| PCI-Express (PCIe) Configuration | Default: 5 PCIe 5.0 x16 FHFL slots + 1 PCIe 5.0 x8 FHFL slot |
|---|
| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap 3.5" NVMe/SAS/SATA (Option: 8x 2.5") |
|---|---|
| M.2 | 2 M.2 PCIe 5.0 x4 + 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110/2280) |
| Peripheral Bays | 3 5.25" peripheral bays |
| Fans | Up to 5 heavy duty fans with optimal fan speed control |
|---|---|
| Air Shroud | 1 Air Shroud |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
|---|
| PSU | 2x 2000W Redundant (1 + 1) Titanium Level (96%) |
|---|
