DP Intel 5U Dual-Root PCIe GPU System with up to 10 GPUs and extended thermal capacity.
Official Supermicro specifications for the SYS-522GA-NRT.
| Model | Super X14DBG-AP |
|---|
| CPU | Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
|---|---|
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs |
| Max GPU Count | Up to 8 double-width or 10 single-width GPUs |
|---|---|
| Supported GPU | NVIDIA PCIe: RTX PRO™ 4500 / RTX PRO™ 6000 Blackwell Server Edition |
| CPU-GPU Interconnect | PCIe 5.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) |
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
|---|
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 |
|---|
| LAN | 2 RJ45 10GbE (Intel® I350) |
|---|---|
| USB | 2 USB 3.0 Type-A (rear) |
| Video | 1 VGA port |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
|---|
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
|---|
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
|---|---|
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
| Form Factor | 5U Rackmount |
|---|---|
| Model | CSE-528G2TS-R9K60P |
| Enclosure | 438 x 222.5 x 786.1 mm (17.2" x 8.75" x 31") |
|---|---|
| Package | 720 x 440 x 1080 mm (28.34" x 17.32" x 42.51") |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Color | Black front & silver body |

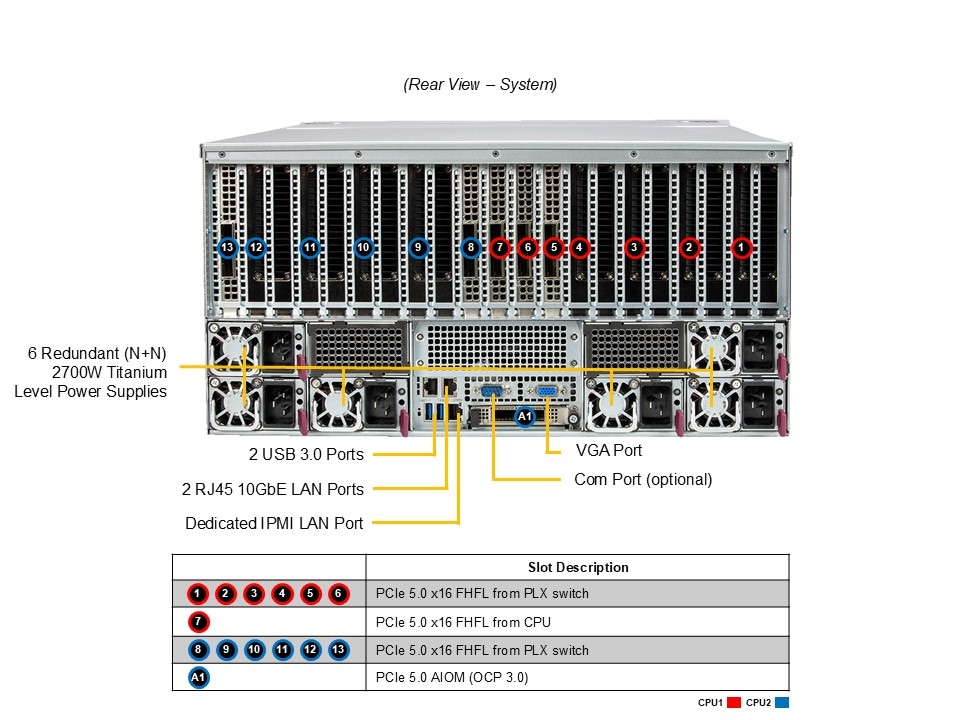

| PCI-Express (PCIe) Configuration | Default: 13 PCIe 5.0 x16 FHFL slots |
|---|---|
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key) |

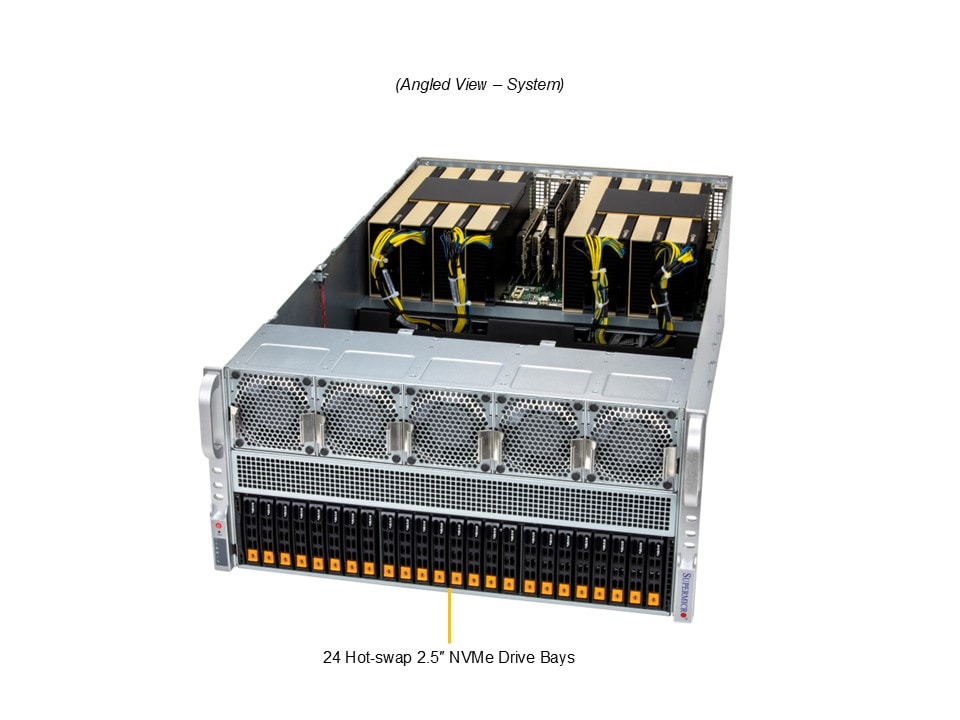

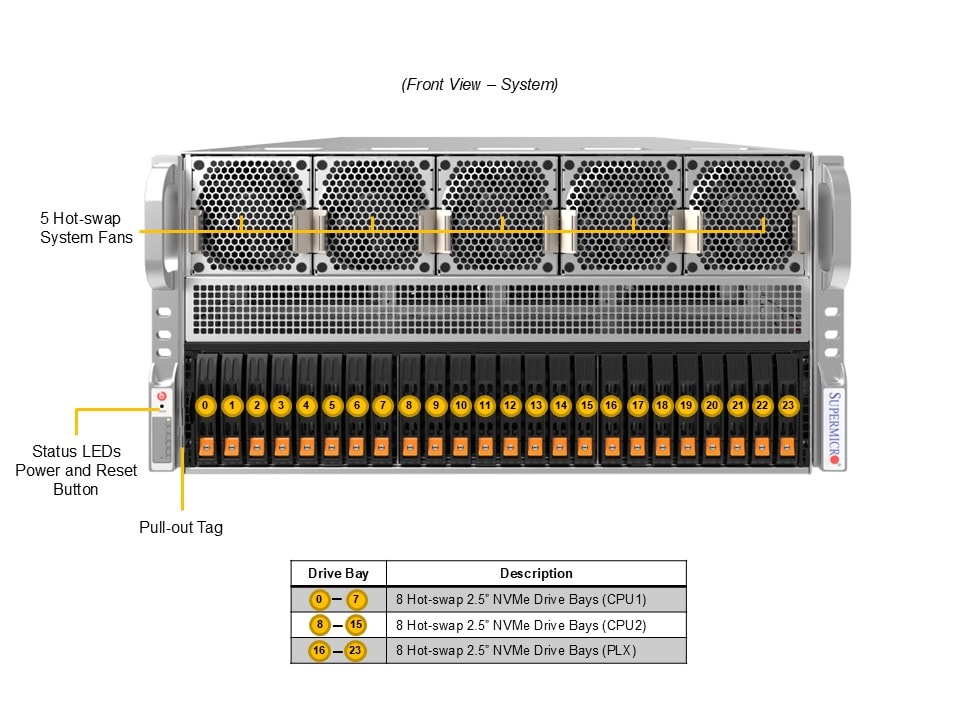

| Drive Bays Configuration | Default: Total 24 bays — 24 front hot-swap 2.5" PCIe 5.0 NVMe |
|---|---|
| M.2 | 2 M.2 NVMe slots (M-key) |
| Fans | Up to 10 heavy duty fans with optimal fan speed control |
|---|---|
| Air Shroud | 1 Air Shroud |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|---|
| PSU | 6x 2700W Redundant (4 + 2) Titanium Level (96%) |
|---|
Official Supermicro firmware, drivers, manuals, and certification resources for the SYS-522GA-NRT. Semifly does not host these files — each link opens Supermicro's official page so you always get the latest version.
Latest system BIOS. Flash only if you have a BIOS-related issue.
Latest BMC firmware for out-of-band management.
Select your OS and device type on Supermicro's download center.
Official user's manual (HTML / PDF).
Official one-page datasheet for the SYS-522GA-NRT.
Certified operating systems and compatibility matrix.
Validate and benchmark your workload on this platform remotely.
Need a specific revision, a quote, or help selecting GPUs, CPUs, drives and networking? Talk to Semifly →
Tell us your GPU model and count, CPU, memory, drives, and networking targets — we'll return a build-to-order quote, typically within one business day.
