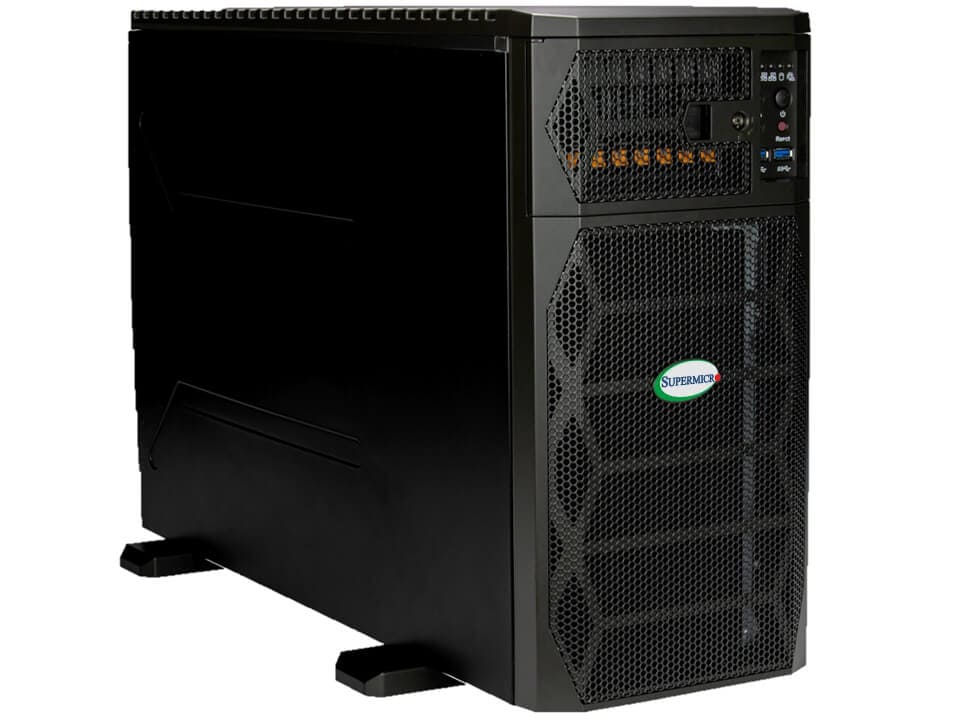

DP rackmount tower 4-GPU workstation with closed-loop liquid cooling.
Official Supermicro specifications for the SYS-751GE-TNRT.
| Model | Super X13DEG-QT |
|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
|---|---|
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Chipset | Intel® C741 |
| Max GPU Count | Up to 4 double-width GPUs (liquid-cooled) |
|---|---|
| Supported GPU | NVIDIA PCIe: A100 |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM |
|---|
| SATA | SATA (6Gbps); RAID 0/1/5/10 support |
|---|---|
| Network Connectivity | 2 RJ45 10GbE with Intel® X550-AT2; 1 RJ45 1GbE with ASPEED AST2600; 1 SFP28 25GbE (optional) |
| LAN | 1 RJ45 1GbE Dedicated BMC; 2 RJ45 10GbE |
|---|---|
| USB | 2 USB 3.2 Gen1 (front); 3 USB 3.2 Gen1 (rear); 1 USB 3.2 Gen2 (rear) |
| Video | 1 VGA port |
| Audio | 7.1 HD Audio (Line Out, Mic In) |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
|---|
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
|---|
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
|---|---|
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
| Form Factor | Tower or 5U Rackmount |
|---|---|
| Model | CSE-759TS-R2K21BP |

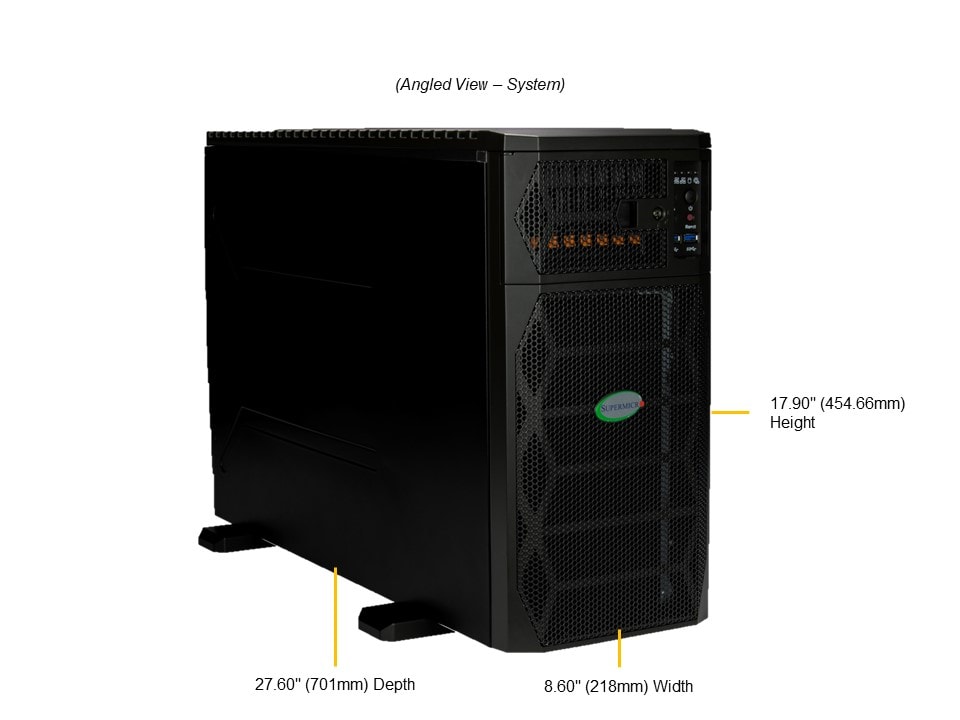

| Enclosure | 454.7 x 218.4 x 701 mm (17.9" x 8.6" x 27.6") |
|---|---|
| Package | 388 x 655 x 956 mm (15.3" x 25.8" x 37.6") |
| Weight | Gross Weight: 121 lbs (55 kg) Net Weight: 97 lbs (44 kg) |
| Available Color | Black front & black body |
| PCI-Express (PCIe) Configuration | Default: 6 PCIe 5.0 x16 FHFL slots |
|---|
| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap 2.5" NVMe/SAS/SATA |
|---|---|
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110) |
| Fans | Up to 1x 8cm + up to 2x 12cm fans; acoustically optimized |
|---|---|
| Liquid Cooling | Closed-loop liquid cooling for CPUs and GPUs; D2C Cold Plate (optional) |
| Environmental Spec. | Operating Temperature: 10°C to 25°C (50°F to 77°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|---|
| PSU | 1x 2200W Redundant Titanium Level (96%) |
|---|
Official Supermicro firmware, drivers, manuals, and certification resources for the SYS-751GE-TNRT. Semifly does not host these files — each link opens Supermicro's official page so you always get the latest version.
Latest system BIOS. Flash only if you have a BIOS-related issue.
Latest BMC firmware for out-of-band management.
Select your OS and device type on Supermicro's download center.
Official user's manual (HTML / PDF).
Official one-page datasheet for the SYS-751GE-TNRT.
Certified operating systems and compatibility matrix.
Validate and benchmark your workload on this platform remotely.
