8U AI training platform with 8 Intel Gaudi® 3 accelerators.
Official Supermicro specifications for the SYS-822GA-NGR3.
| Model | Super X14DBG-GD |
|---|
| CPU | Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
|---|---|
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| Max GPU Count | 8 onboard OAM GPUs |
|---|---|
| Supported GPU | Intel OAM: Gaudi® 3 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | 24x 200GbE (48 x 112Gbps) PAM4 SerDes links |
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM/LRDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
|---|

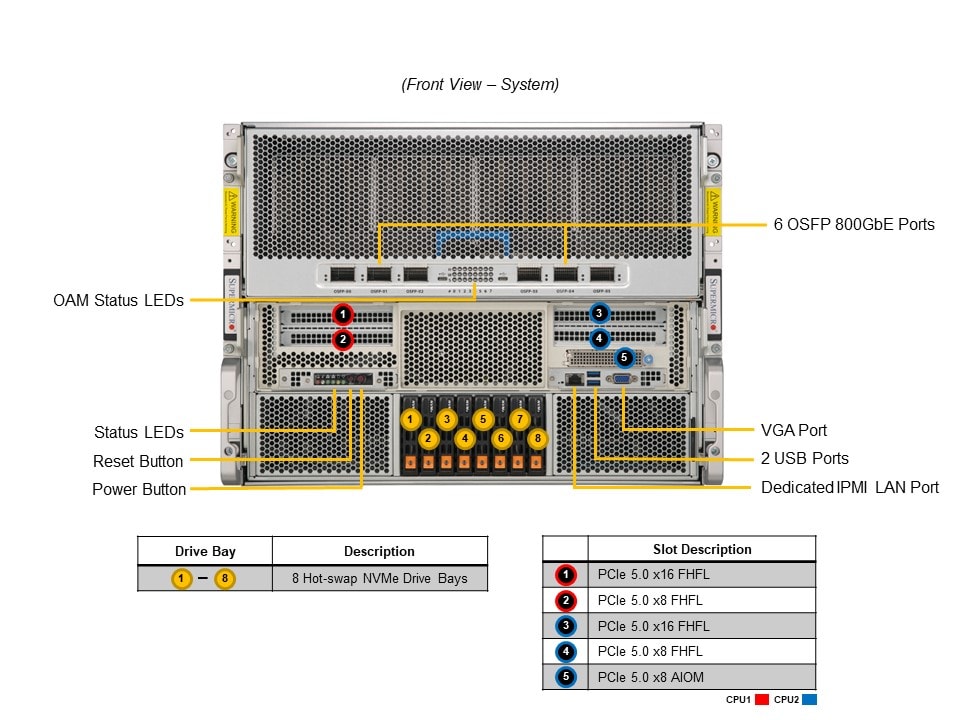

| On-Board LAN | 6 OSFP 800GbE ports |
|---|---|
| AIOM | Dual-port 10GBASE-T (default) |
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
|---|---|
| USB | 2 USB 3.0 Type-A |
| Video | 1 VGA port |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
|---|
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
|---|
| CPU | 7+1 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
|---|---|
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
| Form Factor | 8U Rackmount |
|---|---|
| Model | CSE-GP806TS-R000NPF |
| Enclosure | 447 x 356 x 800 mm (17.6" x 13.8" x 33.2") |
|---|---|
| Package | 750 x 700 x 1300 mm (29.5" x 27.6" x 51") |
| Weight | Gross Weight: 308 lbs (140 kg) Net Weight: 282 lbs (128 kg) |
| Available Color | Silver |
| PCI-Express (PCIe) Configuration | Default: 2 PCIe 5.0 x16 FHFL slots + 2 PCIe 5.0 x8 FHFL slots + 1 PCIe 5.0 x4 AIOM (OCP 3.0) |
|---|---|
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110) |

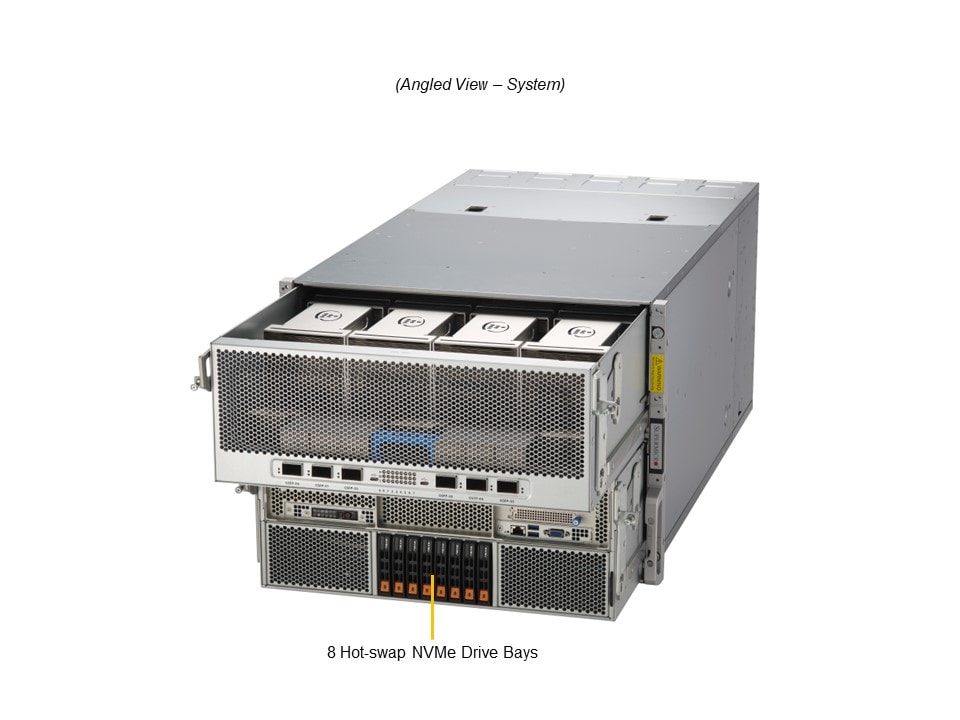

| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap 2.5" PCIe 5.0 NVMe |
|---|---|
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110) |

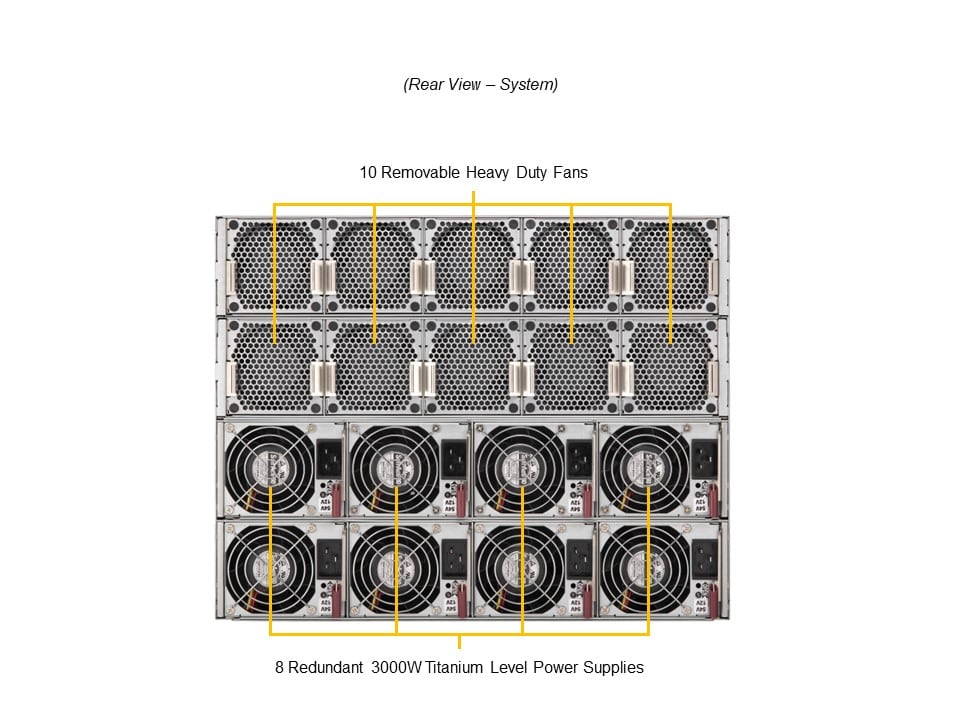

| Fans | Up to 10 removable heavy-duty 80x80x80mm fans |
|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
|---|
| PSU | 8x 3000W Redundant (4 + 4) Titanium Level (96%) |
|---|
