DP Intel 8U System with NVIDIA HGX B300 8-GPU.
Official Supermicro specifications for the SYS-822GS-NB3RT.
| Model | Super X14DBG-LC |
|---|
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700 series processors with P-cores |
|---|---|
| Core Count | Up to 86C/172T; Up to 336MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs |
| Max GPU Count | 8 onboard GPUs |
|---|---|
| Supported GPU | NVIDIA SXM: HGX B300 8-GPU (288GB) — 2.3TB HBM3e per system |
| GPU-GPU Interconnect | 5th Generation NVIDIA® NVLink® (1.8TB/s) with NVSwitch™ |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 6000MT/s ECC DDR5 RDIMM |
|---|
| SuperNIC | 8x NVIDIA ConnectX®-8 SuperNICs, up to 800Gb/s (up to two North/South NICs) |
|---|

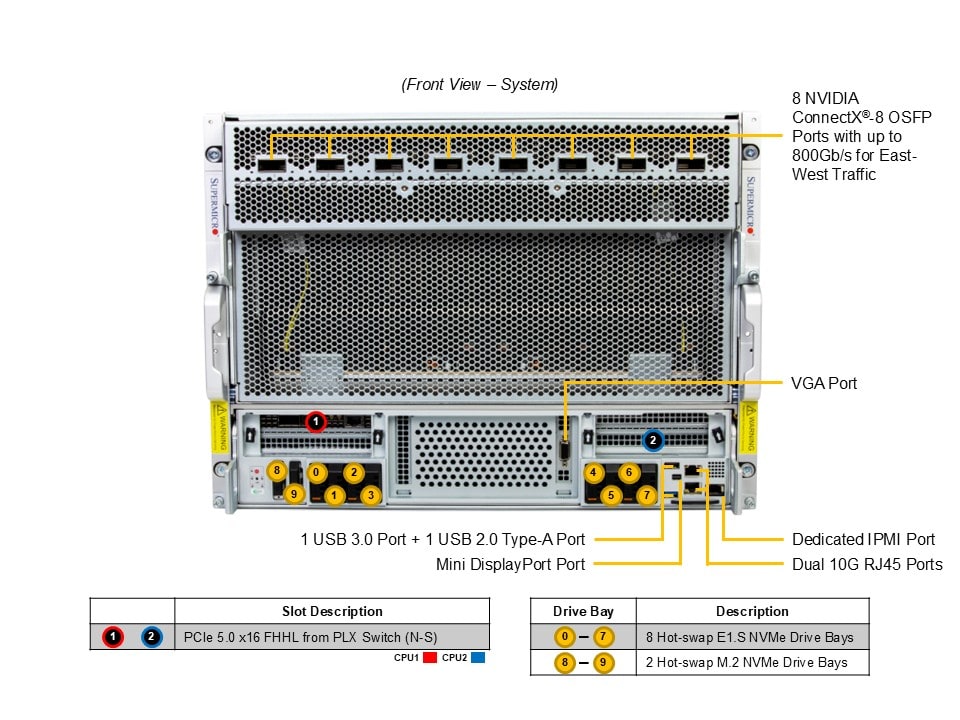

| LAN | 8 OSFP 800GbE ports (NVIDIA ConnectX®-8 SuperNIC) 2 RJ45 10GbE ports (Intel® X710) |
|---|---|
| USB | 1 USB 3.0 Type-A (front); 1 USB 2.0 Type-A (front) |
| Video | 1 VGA port; 1 mini-DP port |
| BIOS Type | AMI 64MB UEFI |
|---|
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
|---|
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
|---|---|
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
| Form Factor | 8U Rackmount |
|---|---|
| Model | CSE-GP807TS-R000NP |
| Enclosure | 449 x 356 x 950 mm (17.6" x 13.8" x 37.4") |
|---|---|
| Package | 730 x 670 x 1280 mm (28.74" x 26.38" x 50.39") |
| Weight | Gross Weight: 302 lbs (137 kg) Net Weight: 263 lbs (119 kg) |
| Available Color | Silver |
| PCI-Express (PCIe) Configuration | Default: 2 PCIe 5.0 x16 FHHL slots |
|---|

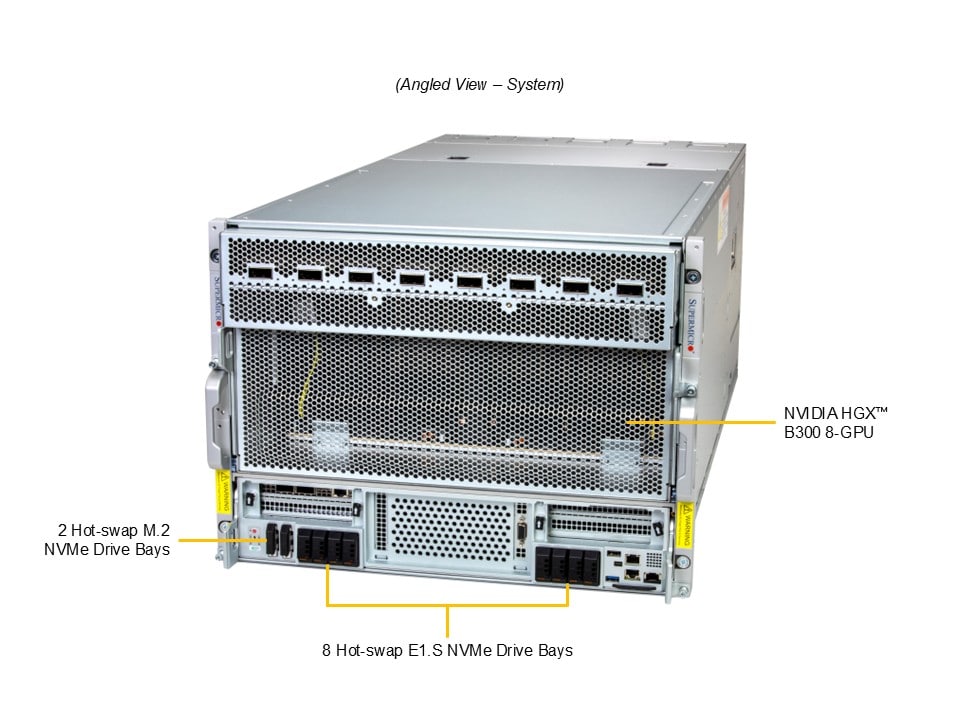

| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap E1.S NVMe |
|---|---|
| M.2 | 2 M.2 NVMe slots (M-key; RAID support via S3808N controller) |
| Fans | Up to 12 heavy duty fans with optimal fan speed control |
|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|---|

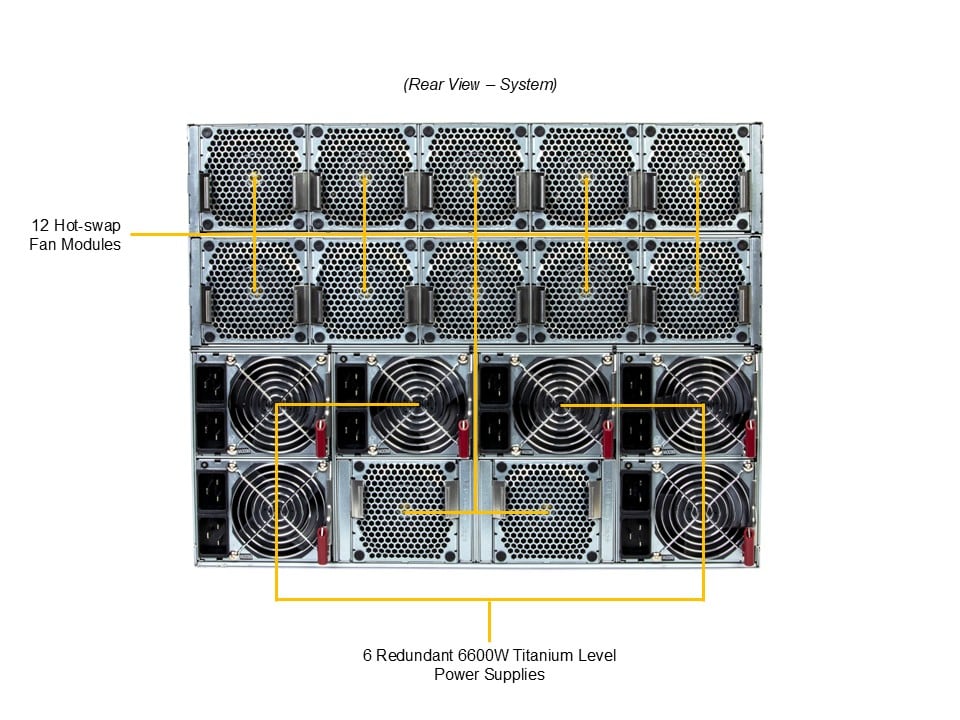

| PSU | 6x 6600W Redundant (3 + 3) Titanium Level (96%) |
|---|
