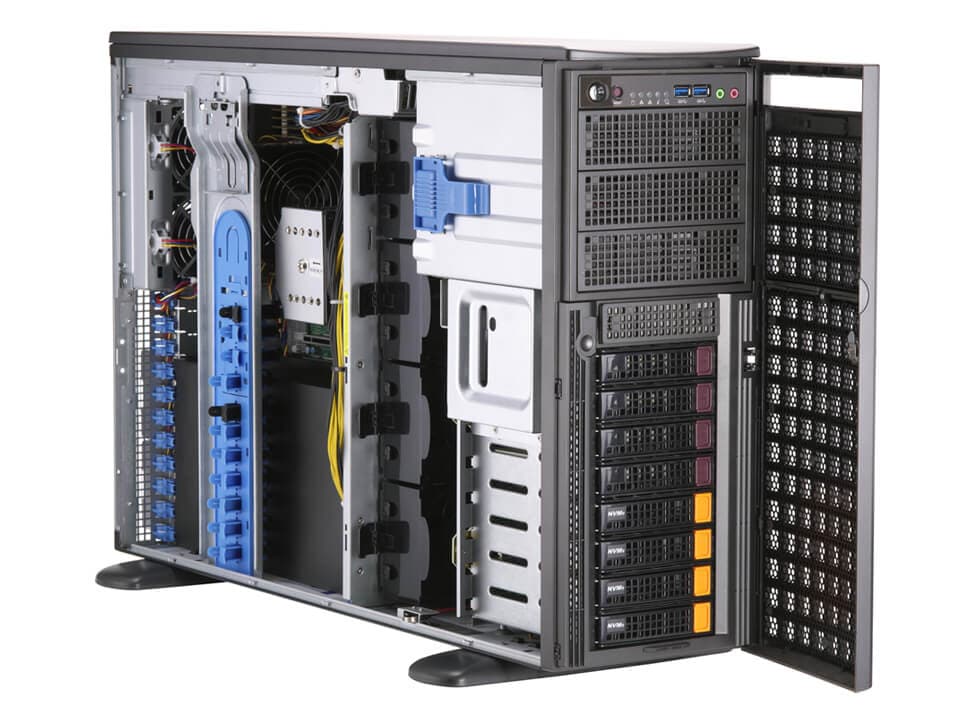

DP Intel, Tower Workstation with 4 GPUs.
Official Supermicro specifications for the SYS-740GP-TNRBT.
| Model | Super X12DPG-QBT6 |
|---|
| CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors |
|---|---|
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| Max GPU Count | Up to 4 double-width GPUs |
|---|---|
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
| Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
|---|---|
| Persistent Memory | Supports Intel® Optane™ persistent memory 200 series |
| SATA | SATA (6Gbps); RAID 0/1/5/10 support |
|---|---|
| Network Connectivity | 2 RJ45 10GbE with Broadcom® BCM57416 |
| Video | 1 VGA port |
|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
|---|
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
|---|
| CPU | 7+1 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
|---|---|
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
| Form Factor | Full-Tower Rackmount |
|---|---|
| Model | CSE-747BTS-R2K20BP |
| Enclosure | 177 x 465.4 x 678.5 mm (6.96" x 18.32" x 26.71") |
|---|---|
| Package | 689 x 329 x 971 mm (27.12" x 12.95" x 38.22") |
| Weight | Gross Weight: 57 lbs (25.85 kg) Net Weight: 52.9 lbs (24 kg) |
| Available Color | Black |

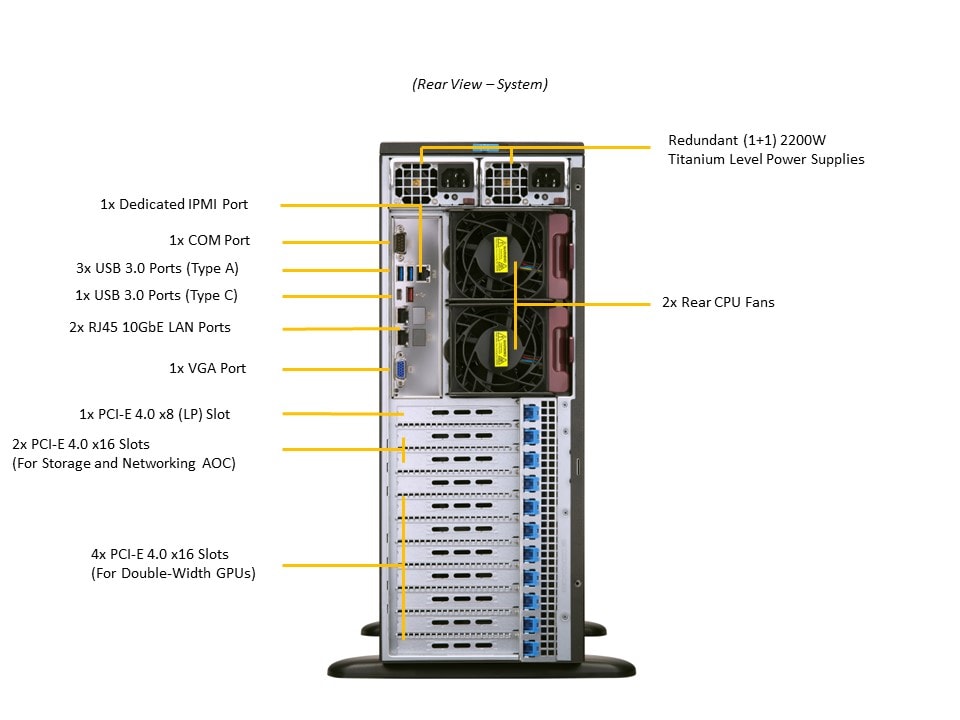

| PCI-Express (PCIe) Configuration | Default: 4 PCIe 4.0 x16 FHFL slots + 2 PCIe 4.0 x16 LP slots + 1 PCIe 4.0 x8 LP slot |
|---|

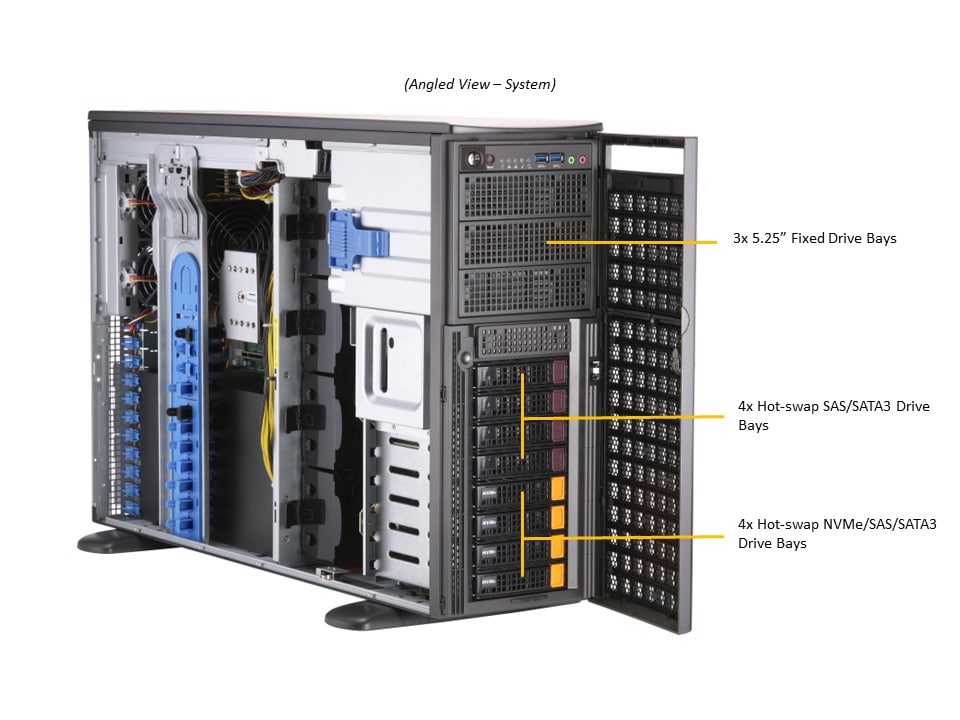

| Drive Bays Configuration | Default: Total 8 bays — 4 front hot-swap 3.5" SAS/SATA + 4 front hot-swap 3.5" NVMe/SAS/SATA |
|---|---|
| M.2 | 2 M.2 NVMe/SATA slots (M-key) |
| Fans | Up to 4 heavy duty fans with optimal fan speed control |
|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|---|
| PSU | 2x 2200W Redundant Titanium Level (96%) |
|---|
Official Supermicro firmware, drivers, manuals, and certification resources for the SYS-740GP-TNRBT. Semifly does not host these files — each link opens Supermicro's official page so you always get the latest version.
Latest system BIOS. Flash only if you have a BIOS-related issue.
Latest BMC firmware for out-of-band management.
Select your OS and device type on Supermicro's download center.
Official user's manual (HTML / PDF).
Official one-page datasheet for the SYS-740GP-TNRBT.
Certified operating systems and compatibility matrix.
Validate and benchmark your workload on this platform remotely.
