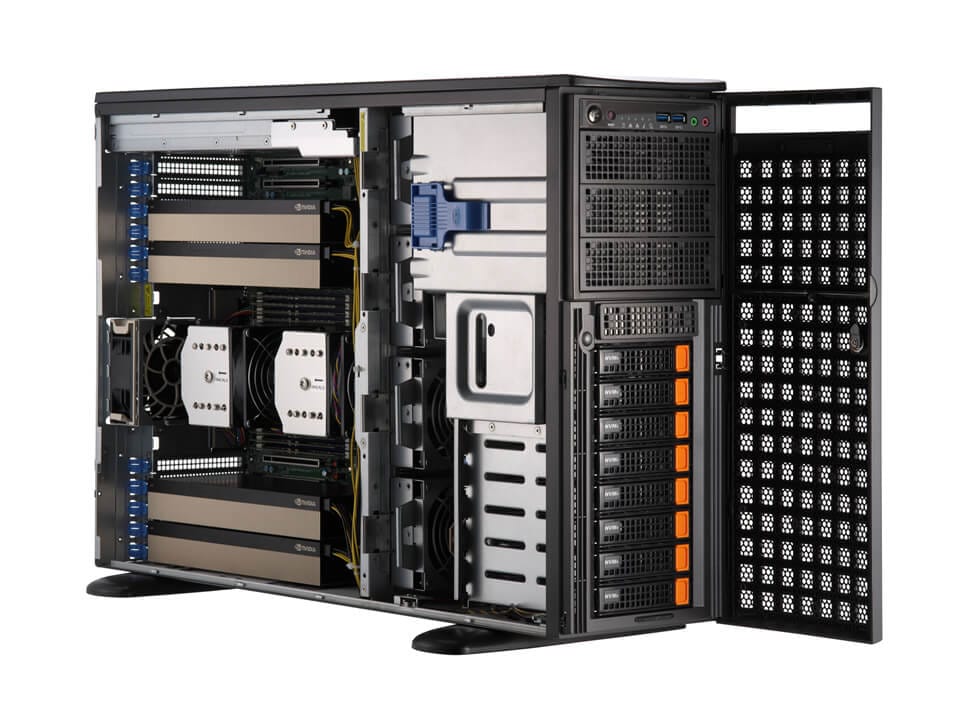

DP Intel Workstation with up to 4 NVIDIA H100 or A100 PCIe GPUs.
Integrated board: X13DEG-QT
Official Supermicro specifications for the SYS-741GE-TNRT.
| Model | Super X13DEG-QT |
|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
|---|---|
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Chipset | Intel® C741 |
| Max GPU Count | Up to 4 double-width GPUs |
|---|---|
| Supported GPU | NVIDIA PCIe: H100, H100 NVL, A100, A30, L4, L40, L40S, RTX PRO™ 6000 Blackwell Max-Q, RTX 4000/6000 Ada, RTX A4000/A5500/A6000 AMD PCIe: Instinct™ MI210 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM |
|---|
| SATA | SATA (6Gbps) |
|---|---|
| Network Connectivity | 2 RJ45 10GbE with Intel® X550-AT2 |
| Video | 1 VGA port (rear) |
|---|---|
| Serial | 1 COM port (rear) |
| Audio | Front audio |
| TPM | 1 TPM onboard / port 80 |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
|---|
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
|---|
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
|---|---|
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
| Form Factor | Tower Rackmount |
|---|---|
| Model | CSE-749TS-R2K05BP |
| Enclosure | 177 x 465.4 x 678.5 mm (6.96" x 18.32" x 26.71") |
|---|---|
| Package | 682 x 320 x 964 mm (26.85" x 12.59" x 37.95") |
| Weight | Gross Weight: 62 lbs (28.1 kg) Net Weight: 46 lbs (20.9 kg) |
| Available Color | Black front & silver body |

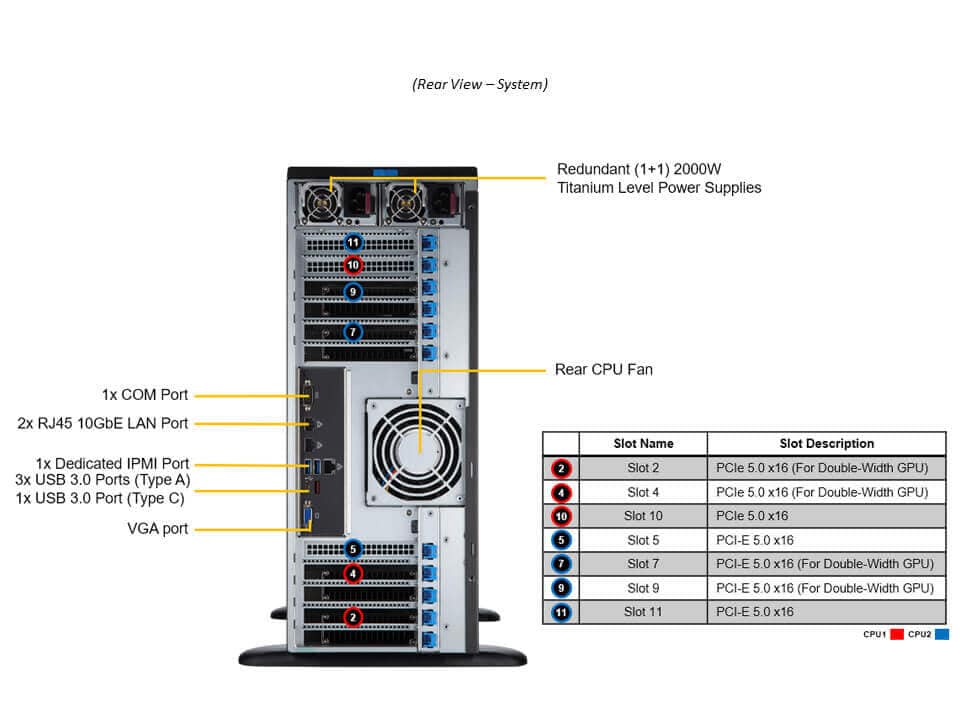

| PCI-Express (PCIe) Configuration | Default: 7 PCIe 5.0 x16 FHFL slots |
|---|---|
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key) |

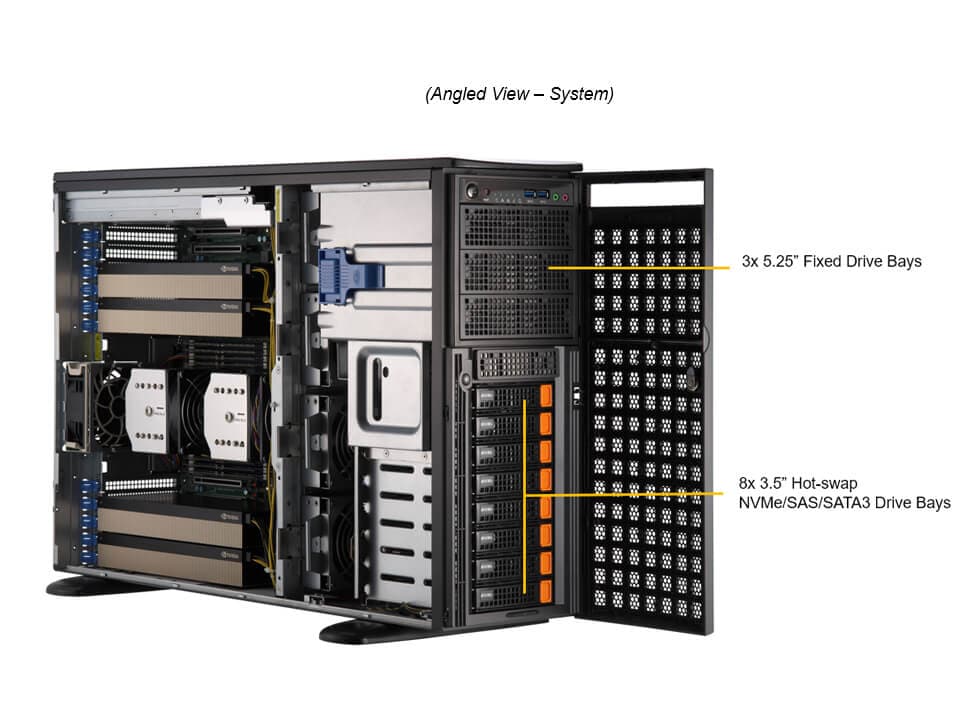

| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap 3.5" NVMe/SAS/SATA Option A: 8 front hot-swap 2.5" NVMe/SAS/SATA |
|---|---|
| M.2 | 2 M.2 NVMe slots (M-key) |
| Fans | Up to 4 heavy duty fans with optimal fan speed control |
|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
|---|
| PSU | 2x 2000W Redundant (1 + 1) Titanium Level (96%) |
|---|
Official Supermicro firmware, drivers, manuals, and certification resources for the SYS-741GE-TNRT. Semifly does not host these files — each link opens Supermicro's official page so you always get the latest version.
Latest system BIOS. Flash only if you have a BIOS-related issue.
Latest BMC firmware for out-of-band management.
Select your OS and device type on Supermicro's download center.
Official user's manual (HTML / PDF).
Official one-page datasheet for the SYS-741GE-TNRT.
Certified operating systems and compatibility matrix.
Validate and benchmark your workload on this platform remotely.
