Supermicro · CloudDC SuperServer

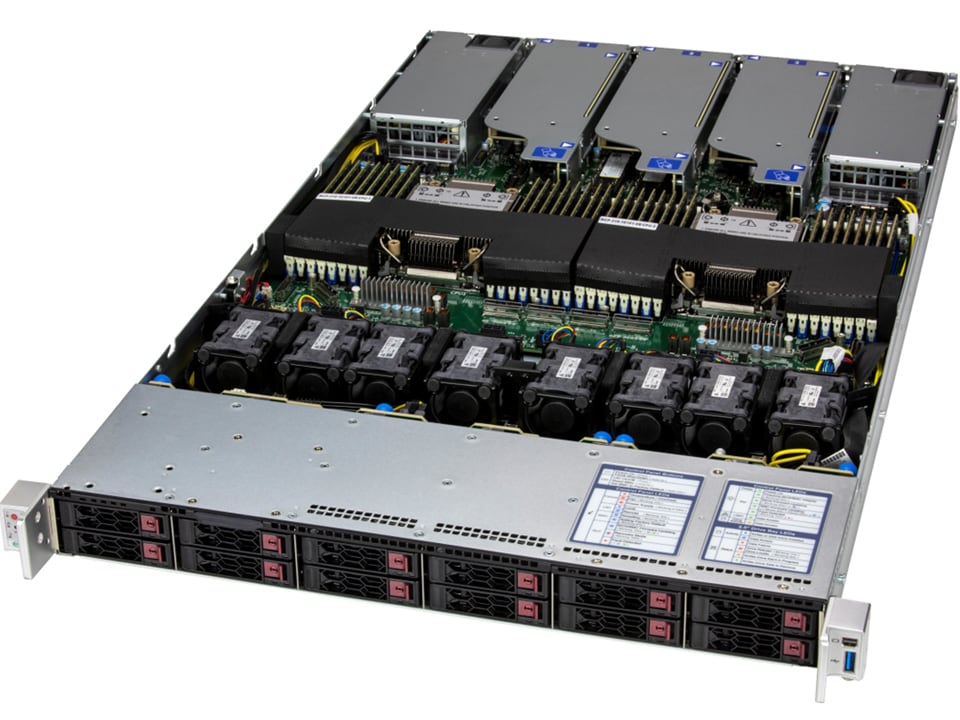

SYS-122C-TN

1U CloudDC (DC-MHS) with 12 hot-swap 2.5" NVMe/SATA/SAS bays, 3 PCIe 5.0 slots and 2 PCIe 5.0 x16 AIOM slots.

Request a Quote Datasheet (PDF)

Sold and configured by Semifly — an authorized Supermicro reseller.

Form factor

Dual

Sockets

Intel Xeon

Processor

8TB

Max memory

12 bays

Drive bays

2× 1000W

Power

Key Applications

Data Center Optimized
Value IaaS
Cloud Computing
HPC
Private & Hybrid Cloud
CSP
Network Security Appliance

Key Features

DC-MHS design for simplified CSP deployment & serviceability
Dual Intel® Xeon® 6700/6500 (P-core or E-core)
32 DIMM slots, up to 8TB DDR5
12 hot-swap 2.5" NVMe/SAS/SATA bays
2 AIOM (OCP 3.0) slots; OpenBMC management
Dual 1000W Titanium redundant PSUs

Key configuration for the SYS-122C-TN. Full manufacturer specifications are on the official Supermicro datasheet (linked under Resources).

Processor

CPU Sockets	2
CPU	Intel® Xeon® 6700/6500 (P-core or E-core)
Core Count	P-core up to 86C/172T; E-core up to 144C

System Memory

DIMM Slots	32 DIMM slots
Max Memory	Up to 8TB DDR5 ECC RDIMM (5200, 2DPC)

GPU (optional)

Supported	Up to 3 single-width GPUs — NVIDIA L4

Drive Bays / Storage

Configuration	12 default
Drive type	2.5" NVMe/SAS/SATA

Expansion (PCIe)

Slots	2 PCIe 5.0 x16 + 1 x8 LP + 2 AIOM

Networking

On-board / AIOM	AIOM (OCP NIC 3.0)

Cooling

Type	Air

Power Supply

PSU	2× 1000W Redundant Titanium

Form Factor

Form factor	1U
Motherboard	Super X14DBHM
Chassis	CSE-DC101TS-R000NP

Management

Software	SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish

Official Supermicro firmware, drivers, manuals, and certification resources for the SYS-122C-TN. Semifly does not host these files — each link opens Supermicro’s official page so you always get the latest version.

BIOS Downloads

Latest system BIOS. Flash only if you have a BIOS-related issue.

Supermicro

BMC / IPMI Firmware

Latest BMC firmware for out-of-band management.

Supermicro

Drivers & Utilities

Select your OS and device type on Supermicro's download center.

Supermicro

User's Manuals

Official user's manual (HTML / PDF).

Supermicro

Datasheet (PDF)

Official one-page datasheet for the SYS-122C-TN.

Supermicro

OS Compatibility & Certification

Certified operating systems and compatibility matrix.

Supermicro

Need a specific revision, a quote, or help selecting CPUs, memory, drives and networking? Talk to Semifly →

Configure the SYS-122C-TN

Tell us your CPU, memory, drives and networking targets — we’ll return a build-to-order quote, typically within one business day.

Request a Quote →
