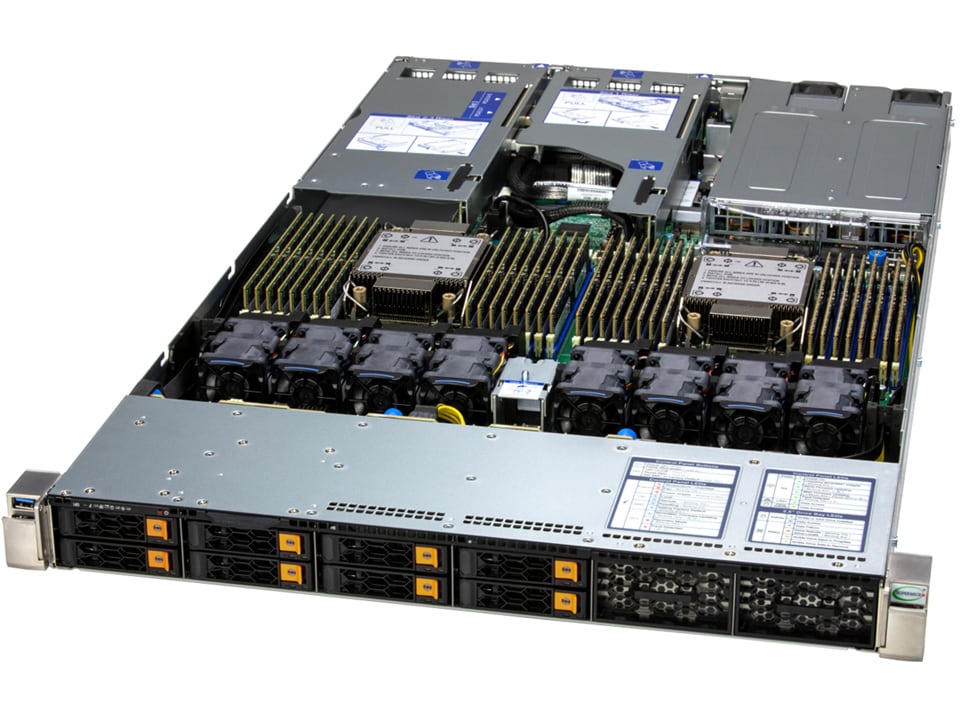

1U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot.
Key configuration for the SYS-122H-TN. Full manufacturer specifications are on the official Supermicro datasheet (linked under Resources).
| CPU Sockets | 2 |
|---|---|
| CPU | Intel® Xeon® 6700/6500 (P-core or E-core) |
| Core Count | P-core up to 86C/172T; E-core up to 144C |
| DIMM Slots | 32 DIMM slots |
|---|---|
| Max Memory | Up to 8TB DDR5 ECC RDIMM (5200, 2DPC) |
| Supported | Up to 1 double-width GPU — NVIDIA RTX PRO 4500 (Server Edition) |
|---|
| Configuration | 8 default (up to 12) |
|---|---|
| Drive type | 2.5" NVMe/SAS/SATA |
| Slots | 3 PCIe 5.0 x16 + 1 AIOM |
|---|
| On-board / AIOM | AIOM (OCP NIC 3.0) |
|---|
| Type | Air / optional D2C liquid |
|---|
| PSU | 2× 1200W Redundant Titanium |
|---|
| Form factor | 1U |
|---|---|
| Motherboard | Super X14DBM-SP |
| Chassis | CSE-HS119-R000NP2 |
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
|---|
Official Supermicro firmware, drivers, manuals, and certification resources for the SYS-122H-TN. Semifly does not host these files — each link opens Supermicro’s official page so you always get the latest version.
Latest system BIOS. Flash only if you have a BIOS-related issue.
Latest BMC firmware for out-of-band management.
Select your OS and device type on Supermicro's download center.
Official user's manual (HTML / PDF).
Official one-page datasheet for the SYS-122H-TN.
Certified operating systems and compatibility matrix.
