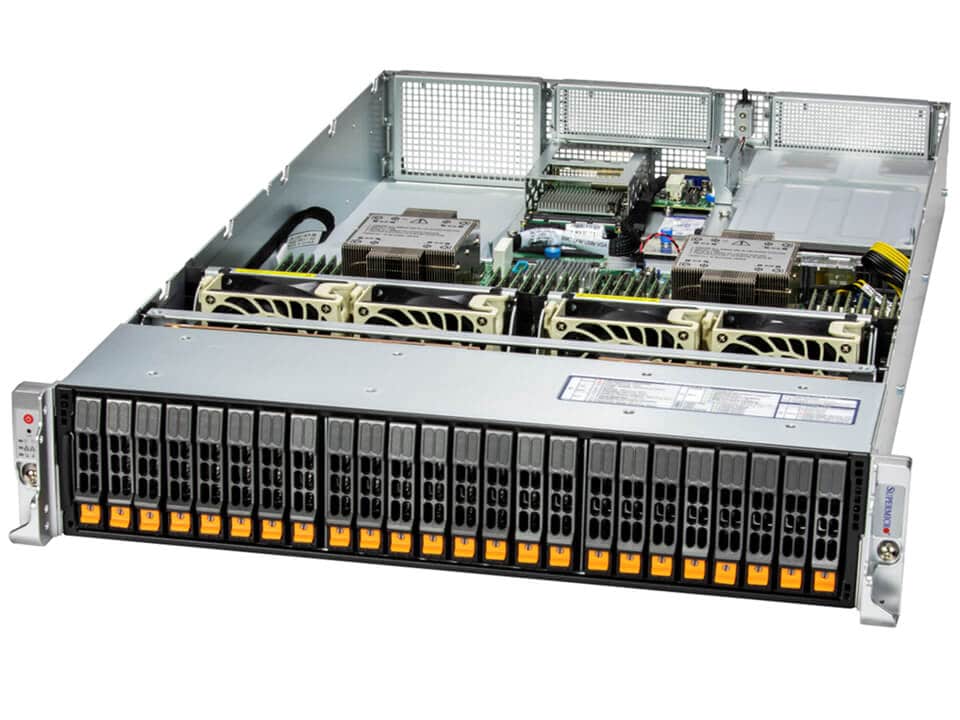

2U Hyper with 24 hot-swap 2.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots.
Key configuration for the SYS-221H-TN24R. Full manufacturer specifications are on the official Supermicro datasheet (linked under Resources).
| CPU Sockets | 2 |
|---|---|
| CPU | 5th/4th Gen Intel® Xeon® Scalable |
| Core Count | Up to 64C/128T; 320MB cache |
| DIMM Slots | 32 DIMM slots |
|---|---|
| Max Memory | Up to 8TB DDR5 ECC RDIMM (4400, 2DPC) |
| Supported | Up to 2 double-width GPUs — NVIDIA A100, L40S |
|---|
| Configuration | 24 default |
|---|---|
| Drive type | 2.5" NVMe/SAS/SATA |
| Slots | 4 PCIe 5.0 x16 (or 8 x8) + 2 AIOM |
|---|
| On-board / AIOM | AIOM (OCP NIC 3.0) |
|---|
| Type | Air / optional D2C liquid |
|---|
| PSU | 2× 1600W Redundant Titanium |
|---|
| Form factor | 2U |
|---|---|
| Motherboard | Super X13DEM |
| Chassis | CSE-HS219-R1K63P |
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
|---|
Official Supermicro firmware, drivers, manuals, and certification resources for the SYS-221H-TN24R. Semifly does not host these files — each link opens Supermicro’s official page so you always get the latest version.
Latest system BIOS. Flash only if you have a BIOS-related issue.
Latest BMC firmware for out-of-band management.
Select your OS and device type on Supermicro's download center.
Official user's manual (HTML / PDF).
Official one-page datasheet for the SYS-221H-TN24R.
Certified operating systems and compatibility matrix.
