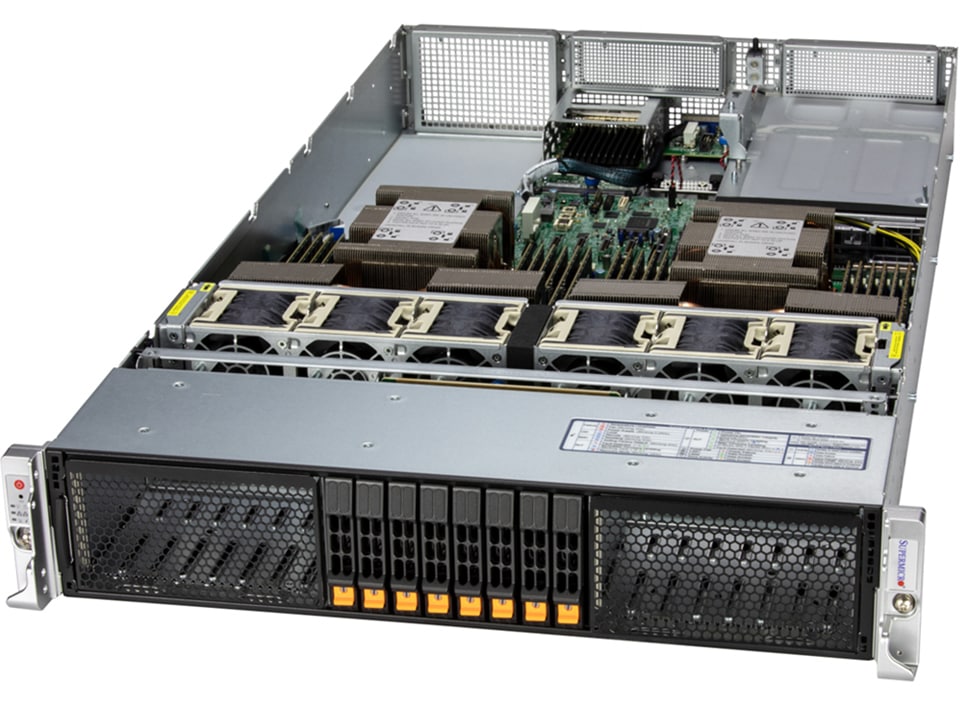

2U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots.
Key configuration for the SYS-222HA-TN. Full manufacturer specifications are on the official Supermicro datasheet (linked under Resources).
| CPU Sockets | 2 |
|---|---|
| CPU | Intel® Xeon® 6900 (P-core, Socket BR) |
| Core Count | Up to 128C/256T; 504MB cache |
| DIMM Slots | 24 DIMM slots |
|---|---|
| Max Memory | Up to 6TB DDR5-6400 RDIMM / 8800 MRDIMM |
| Supported | Up to 4 double-width GPUs — NVIDIA H100 NVL, L40S, L4 |
|---|
| Configuration | 8 default (up to 24) |
|---|---|
| Drive type | 2.5" NVMe/SAS/SATA |
| Slots | 4 PCIe 5.0 x16 (or 8 x8) + 2 AIOM |
|---|
| On-board / AIOM | AIOM (OCP NIC 3.0) |
|---|
| Type | Air / optional D2C liquid |
|---|
| PSU | 2× 2600W Redundant Titanium |
|---|
| Form factor | 2U |
|---|---|
| Motherboard | Super X14DBM-AP |
| Chassis | CSE-HS201-R000NFP |
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
|---|
Official Supermicro firmware, drivers, manuals, and certification resources for the SYS-222HA-TN. Semifly does not host these files — each link opens Supermicro’s official page so you always get the latest version.
Latest system BIOS. Flash only if you have a BIOS-related issue.
Latest BMC firmware for out-of-band management.
Select your OS and device type on Supermicro's download center.
Official user's manual (HTML / PDF).
Official one-page datasheet for the SYS-222HA-TN.
Certified operating systems and compatibility matrix.
