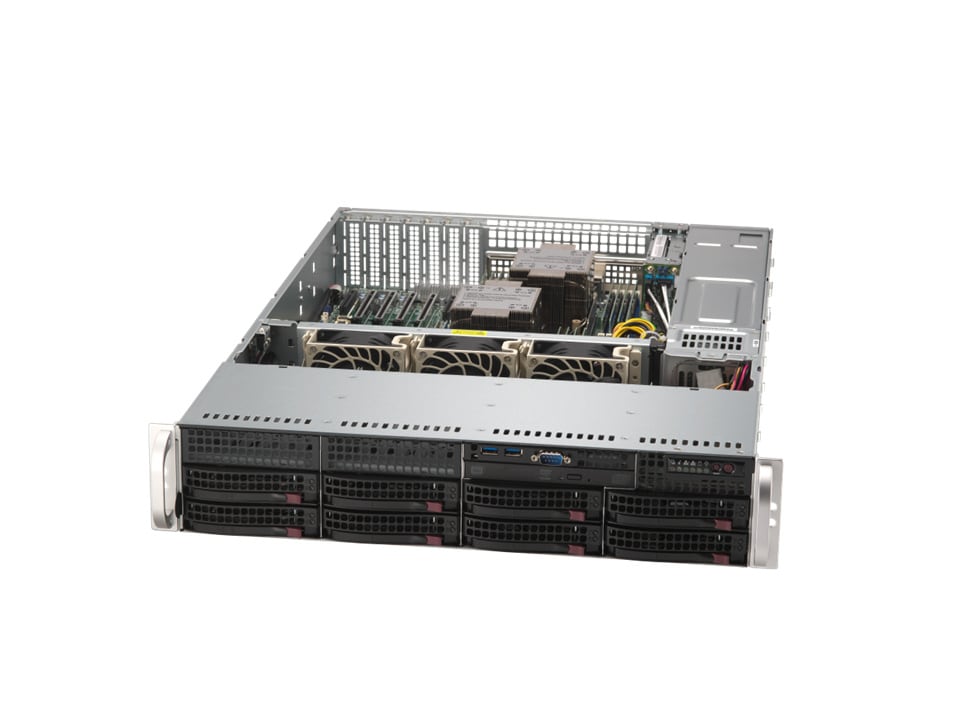

2U Mainstream server with 8 hot-swap 3.5" bays, 6 PCIe 5.0 slots and dual onboard 10GbE.
Key configuration for the SYS-622B-TRT. Full manufacturer specifications are on the official Supermicro datasheet (linked under Resources).
| CPU Sockets | 2 |
|---|---|
| CPU | Intel® Xeon® 6700/6500 (P-core or E-core) |
| Core Count | P-core up to 128C/256T; E-core up to 144C |
| DIMM Slots | 16 DIMM slots |
|---|---|
| Max Memory | Up to 2TB DDR5-6400 ECC RDIMM |
| Configuration | 8 default |
|---|---|
| Drive type | 3.5" NVMe/SAS/SATA |
| Slots | 4 PCIe 5.0 x16 LP + 2 x8 LP |
|---|
| On-board / AIOM | 2× 10GbE RJ45 |
|---|
| Type | Air |
|---|
| PSU | 2× 1200W Redundant Titanium |
|---|
| Form factor | 2U |
|---|---|
| Motherboard | Super X14DBI-T |
| Chassis | CSE-825BTS-R1K23LPP1 |
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
|---|
Official Supermicro firmware, drivers, manuals, and certification resources for the SYS-622B-TRT. Semifly does not host these files — each link opens Supermicro’s official page so you always get the latest version.
Latest system BIOS. Flash only if you have a BIOS-related issue.
Latest BMC firmware for out-of-band management.
Select your OS and device type on Supermicro's download center.
Official user's manual (HTML / PDF).
Official one-page datasheet for the SYS-622B-TRT.
Certified operating systems and compatibility matrix.
Need a specific revision, a quote, or help selecting CPUs, memory, drives and networking? Talk to Semifly →
Tell us your CPU, memory, drives and networking targets — we’ll return a build-to-order quote, typically within one business day.
