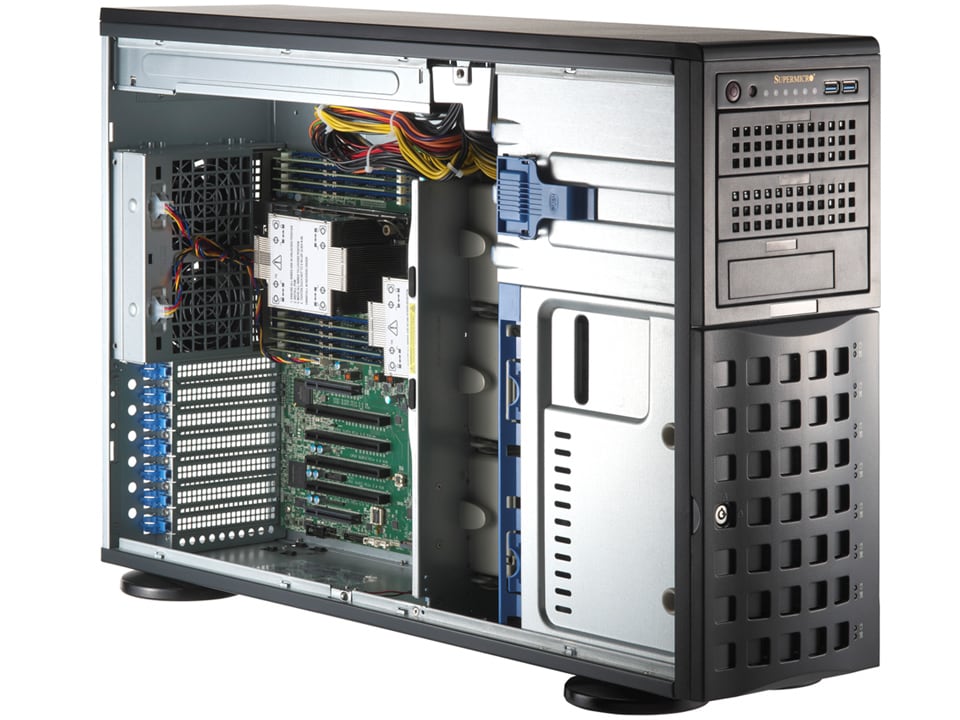

Supermicro SYS-741P-TR server
Supermicro · Mainstream SuperServer

SYS-741P-TR

4U rackmount/tower server with 8 hot-swap 3.5" bays, 6 PCIe 5.0 slots and dual 1GbE.

Request a Quote Datasheet (PDF)
Sold and configured by Semifly — an authorized Supermicro reseller.
4U
Form factor
Dual
Sockets
Intel Xeon
Processor
4TB
Max memory
8 bays
Drive bays
2× 1200W
Power

Key Applications

  • Virtualization
  • Enterprise Server
  • Application & Data Serving
  • Compute-Intensive Applications

Key Features

  • Dual 5th/4th Gen Intel® Xeon® Scalable, up to 300W
  • 16 DIMM slots, up to 4TB DDR5-5600
  • 8 hot-swap 3.5"/2.5" NVMe/SAS/SATA bays
  • 6 PCIe 5.0 FHFL slots (4× x16 + 2× x8); double-width GPU support
  • Tower or 4U rackmount form factor
  • Dual 1200W Titanium redundant PSUs

Key configuration for the SYS-741P-TR. Full manufacturer specifications are on the official Supermicro datasheet (linked under Resources).

Processor

CPU Sockets2
CPU5th/4th Gen Intel® Xeon® Scalable
Core CountUp to 64C/128T (300W TDP)

System Memory

DIMM Slots16 DIMM slots
Max MemoryUp to 4TB DDR5-5600 ECC RDIMM

GPU (optional)

SupportedUp to 2 double-width GPUs — NVIDIA H100 NVL, L40S, L4, A16, RTX PRO 6000/4000

Drive Bays / Storage

Configuration8 default
Drive type3.5"/2.5" NVMe/SAS/SATA

Expansion (PCIe)

Slots4 PCIe 5.0 x16 + 2 x8 FHFL

Networking

On-board / AIOM2× 1GbE RJ45

Cooling

TypeAir

Power Supply

PSU2× 1200W Redundant Titanium

Form Factor

Form factor4U
MotherboardSuper X13DEI
ChassisCSE-745BTS-R1K23BP

Management

SoftwareSuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish
